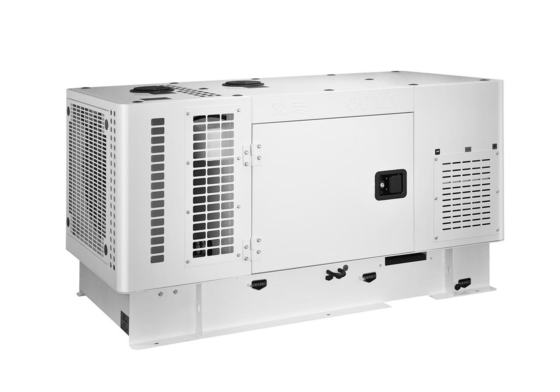

8.5 - 10kva 1500 / 1800rpm 3 Phase 62dBA Silent Diesel Generator Set by 3 Cylinder Diesel Engine

Large Image : 8.5 - 10kva 1500 / 1800rpm 3 Phase 62dBA Silent Diesel Generator Set by 3 Cylinder Diesel Engine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM8CYD3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

silent diesel generators

portable silent generator

62dBA 3 Phase Silent Diesel Generator Set 8.5 - 10kva 1500 / 1800rpm 3 Cylinder Diesel Engine

Quick Detail:

Three phase ultra silent generator set.
8.5KW(10.6Kva)/ 50Hz, 10KW(12.5Kva)/ 60Hz. Power factor 0.8.
Three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine powered.
70L fuel tank, 15 hours continuous running.
60℃ radiator,62dBA noise level.
Terminal block
SAIL brand maintenance-free battery.

Description:
1, Compact structure and light weight.

2, Four-cavity design genset housing with excellent ventilation and noise reduction

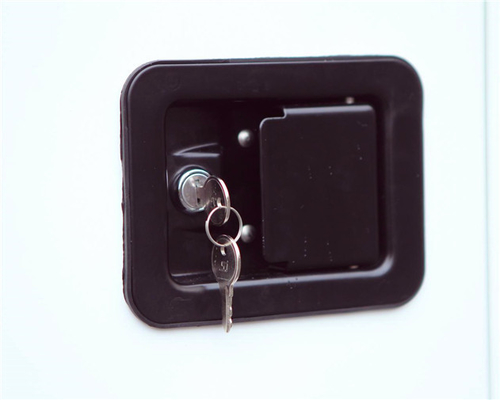

Two big service doors with keys.

3, Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.

4, 60℃ radiator adopted, best choice for hot areas.

5, Assembling bolts are hidden covered by corrosion-resistant rubber cover.
Complete protections and parameter digital display.

6, 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.
Painting is by electrostatic spraying, no color difference or fading within 5 years.

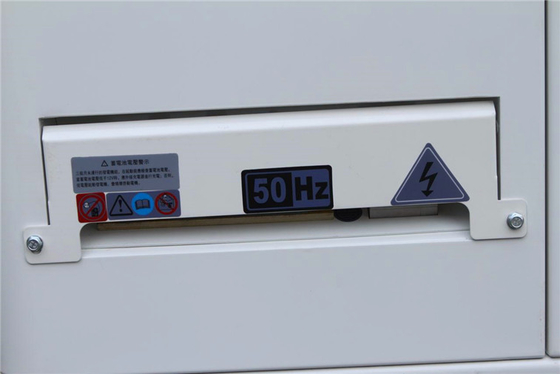

7, Relay, fuse and AVR are in one box for easy maintenance or repair.

Applications:

Portable for residential, commercial and industrial use.
Specifications:

Generator set	Model	OM8CYD3
	Brand	OUMA
	Rated power(KW)	8 11
	Rated voltage(V)	400/230 416/240
	Rated current(A)	14.4 19
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave,distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	60
	Overall dimension (L×W×H)(mm)	≤1670×750×853
	Overall weight(kg)	≤580
	Fuel tank capacity(L)	70
	Continuous running(h)	15

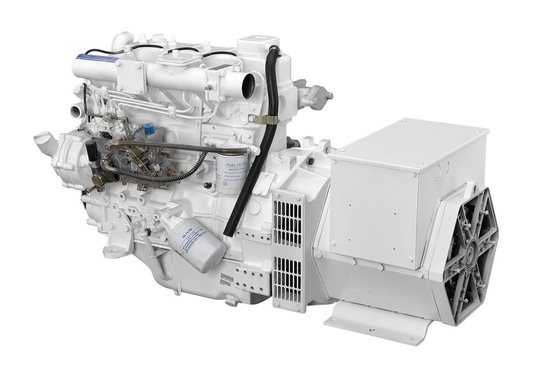

Diesel engine	Model	OM385
	Brand	OUMA FAWDE
	Power output(KW)	10 12
	Type	Three cylinder, direct injection, four stroke
	Displacement(L)	1.2
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Upward exhaust
	Radiator size(L)	9
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C3
	Brand	OUMA
	Rated power(KW)	8.5 10
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase, four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminals
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Unique optimized user-friendly design.
Availability of manufacturer genuine spare parts for whole life of the gensets.
Low noise, low vibration,low fuel consumption.
Fast delivery within 20 working days for FCL.
Strict in process control and pre-delivery testing of at least two hours.
Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
15 months or 1000 running hours warranty, whichever comes first.
ISO and CE certificated.
