25KW -28KW Silent Diesel Generator Set Three Phase Four Cylinder Four Wire for Residential / Industrial Use
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silent diesel generators,super silent diesel generator |
||
|---|---|---|---|
Four Cylinder Silent Diesel Generator Set Three Phase Four Wire for Residential / Industrial 25KW
Quick Detail:
- Three phase Silent Diesel Generator Set
- 25KW / 50Hz, 28KW/ 60Hz. Single or dual AC voltage
- Driven by powerful Four cylinder, 31kw/1500rpm, 36kw/1800rpm diesel engine.
- Smartgen HGM6100U automatic controller, integrating digital, intelligent and network techniques
- ATS optional.
Description:
-
Adopt the first top Chinese or international brand engines, alternators and control panels.
-
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
-
Complete display of main parameters and protections on the control panel.
-
Unique noise reduction technology, noise of silent gensets is only 62dBa at 7 meters.
-
The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized.
-

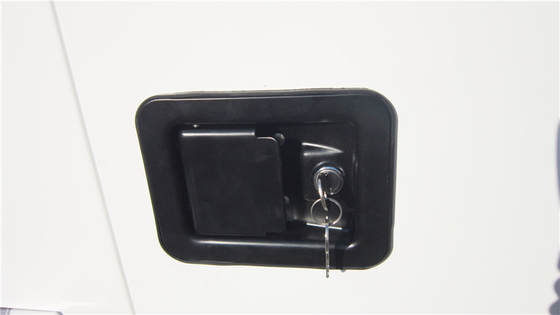

Two big service doors with keys. Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
- 60℃ radiator is used on all gensets so they can be used in all weather conditions, such as tropical and chilly areas.
Applications:
Ideal power capacity for a villa, small factory, stores, banks or other facilities. FAWDE engine powered and Stamford type alternator equipped ensure high reliability.
Specifications:
| Generator set | Model | OM25CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 25 28 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 45 48.5 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60x2 | |
| Overall dimension (L×W×H)(mm) |
≤1980×950×980 | |
| Overall weight(kg) | ≤960 | |
| Fuel tank capacity(L) | 100 | |
| Continuous running(h) | 9 | |
| Diesel engine | Model | OM4102 |
| Brand | OUMA | |
| Power output(KW) | 31 36 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.834 | |
| Bore×Stroke(mm) | 102×100 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10.3 | |
| Alternator | Model | OM188C3 |
| Brand | OUMA | |
| Rated power(KW) | 25 28 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Big openable service doors with keys to lock.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Flexible configuration to best meet local weather conditions.
- Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
- 15 months or 1000 running hours warranty, whichever comes first.
- ISO and CE certificated.
