250KW Durable Water Cooling Silent Diesel Generator Set 3 Phase with 12V DC Electric Starting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silent diesel generators,portable silent generator |
||
|---|---|---|---|
250KW Durable Water Cooling Silent Diesel Generator Set 3 Phase with 12V DC Electric Starting
Quick Detail:
| Product name: |
Silent Diesel Power Generator set |
Brand Name: |
OUMA
|
Model Number: |
OM250CYD3
|
| Output Type: |
AC Three Phase
|
Speed: |
1500 /1800rpm
|
Frequency: |
50 / 60Hz
|
| Rated Power: |
250-298kw
|
Rated Voltage: |
400V/230V 416V/240V
|
Rated Current: |
451A-516A
|
Description:
1. Adopt the first top Chinese brand engines, alternators and control panels. Second biggest customer for FAWDE.
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. FAWDE has engine agent and service team in many countries, service and spare parts can be guarantteed.
2. Unique noise reduction technology, noise of silent gensets is only 65 dBa at 7 meters.
This is a remarkable noise level as most gensets of this size would be over 70dbA.
3. 60℃ radiator is used on all gensets so they can be used in all weather conditions without power reduction or overheat.
This is very important, especially in hot weather areas. Remember generally people use 40 degree radiator, this is not enough for hot areas. We also use oil cooler for very hot countries.

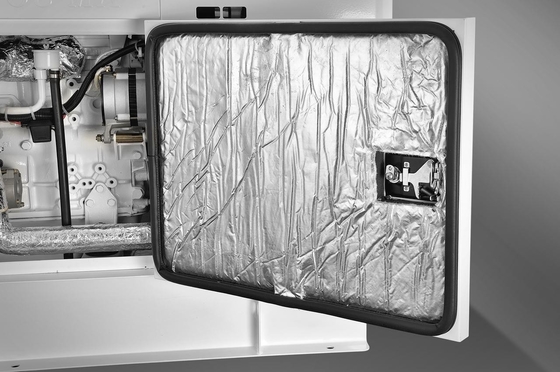

4. The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized.
Other factories install everything in a single cavity, the engine chamber is very hot during running.
Specifications:
| Generator set | Model | OM250CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 250 298 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 451 516 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 65 | |
| Battery(12V-Ah) | 120x2 | |
| Overall dimension (L×W×H)(mm) |
≤4250×1480×2150 | |
| Overall weight(kg) | ≤3800 | |
| Fuel tank capacity(L) | 420 | |
| Continuous running(h) | 8 | |
| Diesel engine | Model | OM4123Z |
| Brand | OUMA | |
| Power output(KW) | 312 374 | |
| Type |
Four cylinder, direct injection, four stroke, |
|
| Displacement(L) | 11.5 | |
| Bore×Stroke(mm) | 112×145 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Electronic | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 42 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 22 | |
| Alternator | Model | OM339U |
| Brand | OUMA | |
| Rated power(KW) | 250 298 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Unique optimized user-friendly design.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- Low noise, low vibration,low fuel consumption.
- ISO and CE certificate.
- Strict in-process control and pre-delivery testing of at least two hours.
- Low noise running within 65dBA at 7meters.
- Stable and reliable output.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Second biggest partner of FAWDE engine in China.
