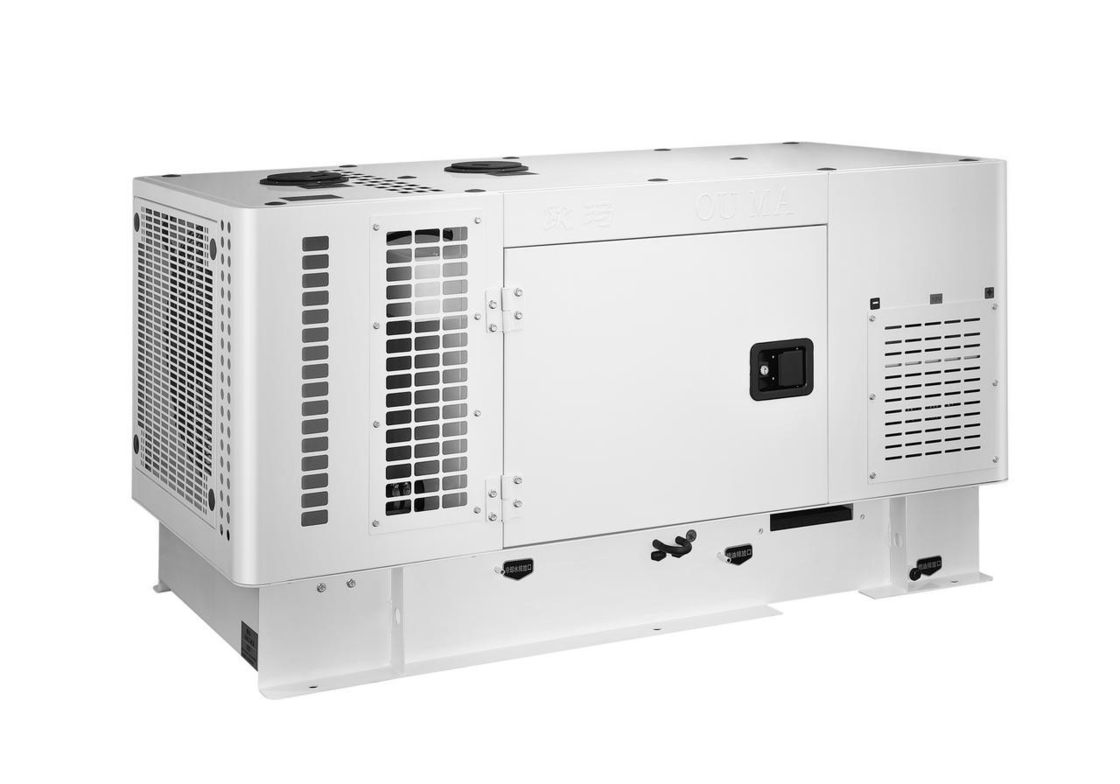

200KW / 50HZ - 240KW / 60HZ Low Fuel Consumption Super Silent Diesel Generator Set
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Power(KW): | 200KW / 50Hz, 240KW / 60Hz. | Noise Level(dB@7m): | 65 |
|---|---|---|---|
| Fuel Tank Capacity(L): | 320 | Continuous Running(h): | 8 |
| High Light: | super silent diesel generator,portable silent generator |
||
Low Fuel Consumption Low Noise Super Silent Diesel Generator Set 400V / 230V 200KW - 240KW
Quick Detail:
- Three phase Silent Diesel Generator Set
- 200KW/ 50Hz, 240KW/ 60Hz.
- Rated voltage: 400V/230V 416V/240V
- Driven by powerful four cylinder, direct injection, four stroke,turbocharged,intercooling., 250kw/1500rpm, 300kw/1800rpm 7.9L diesel engine.
- ATS and THREE remote optional.
- 320L base fuel tank support at least 8 hours continuous running with full load.
- Optional external fuel tank of various sizes.
Description:
Adopt the first top Chinese brand FAWDE engines, alternators and control panels. Second biggest OEM partner for FAWDE.
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
Radiator motor for central AC is used for the radiator fan, so the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours.
Big base fuel tank to support continuous running minimum 9 hours at full load.

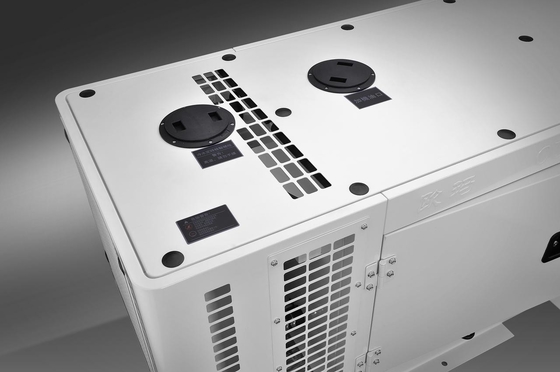

2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
Complete display of main parameters and protections on the control panel.
Unique noise reduction technology, noise of silent gensets is only 62dBa at 7 meters.
60℃ radiator is used on all gensets so they can be used in all weather conditions, such as tropical and chilly areas.
The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized.

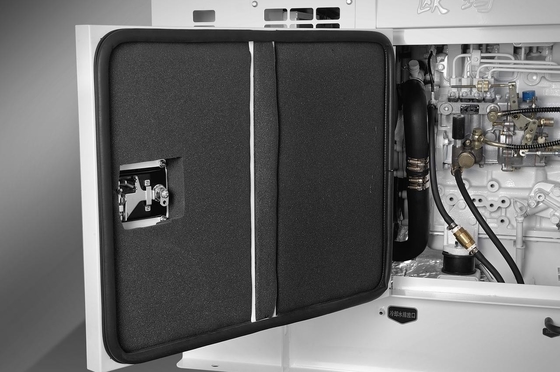

Two big service doors with keys. Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
Specifications:
| Generator set | Model | OM200CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 200 240 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 360 415 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 65 | |
| Battery(12V-Ah) | 120x2 | |
| Overall dimension (L×W×H)(mm) |
≤3650×1280×1850 | |
| Overall weight(kg) | ≤2150 | |
| Fuel tank capacity(L) | 320 | |
| Continuous running(h) | 8 | |
| Diesel engine | Model | OM4112Z |
| Brand | OUMA | |
| Power output(KW) | 250 300 | |
| Type |
Four cylinder, direct injection, four stroke, |
|
| Displacement(L) | 7.9 | |
| Bore×Stroke(mm) | 112×145 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Electronic | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 42 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 22 | |
| Alternator | Model | OM339A |
| Brand | OUMA | |
| Rated power(KW) | 200 240 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 65dBA only at 7meters.
- Stable and reliable output.
- Flexible cooperation modes.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- High customer recognition.
- Availability of genuine spare parts.
- Competitive price and fast delivery within 20 working days
- 15 months or 1000 running hours warranty, whichever comes first
- ISO and CE certificated
-
