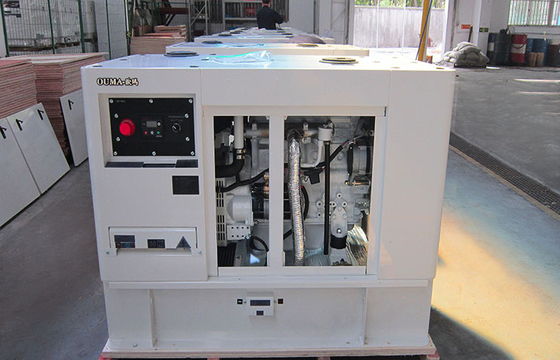

10KW 50Hz / 12KW 60Hz Super Silent Diesel Generator Set for House / Villa Residential

Large Image : 10KW 50Hz / 12KW 60Hz Super Silent Diesel Generator Set for House / Villa Residential Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM10CYD

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

silent diesel generators

super silent diesel generator

50Hz / 60Hz Single Phase Super Silent Diesel Generator Set for House / Villa Residential 10KW

Quick Detail:

Single phase ultra silent generator set;
Rated output 10KW/ 50Hz, 12KW/ 60Hz. Power factor 1.0;

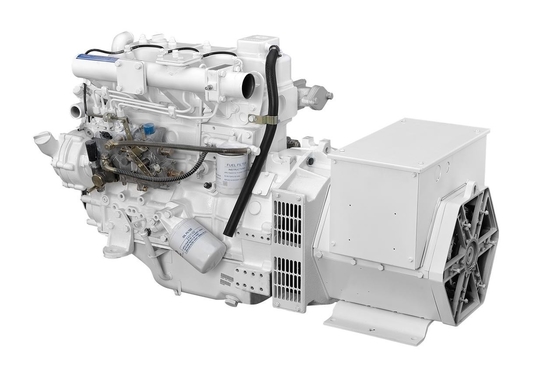

Powered by OUMA FAWDE powerful four cylinder 1.8L diesel engine with rated power 17Kw/1500rpm and 20.4Kw/1800rpm;

Description:

Big engine to drive small capacity generator, ensure excellent durabity;
1 year or 1000 hours limited warranty;
60℃ radiator, reliable operation in hot conditions.
70L fuel tank, 13 hours continuous running.
Silent operation with only 62dBA
Radiator motor for central AC is used for the radiator fan,the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours.
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.

Applications:

Best choice to power your house, villa or other residential,commerical use.

Specifications:

Generator set	Model	OM10CYD
	Brand	OUMA
	Rated power(KW)	10 12
	Rated voltage(V)	115/230 120/240
	Rated current(A)	86.9/43.4 100/50
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave,distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	60
	Overall dimension (L×W×H)(mm)	≤1670×750×853
	Overall weight(kg)	≤580
	Fuel tank capacity(L)	70
	Continuous running(h)	13
Diesel engine	Model	OM485
	Brand	OUMA
	Power output(KW)	17 20.4
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	1.8
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Upward exhaust
	Radiator size(L)	9
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C
	Brand	OUMA
	Rated power(KW)	10 12
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase, three wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	22

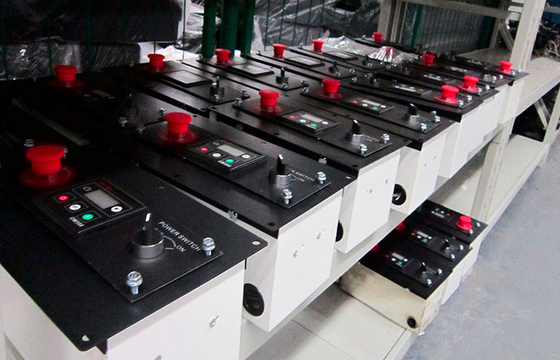

Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminals
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

60℃ radiator for all weather condition .
Four cavity housing with excellent ventilation and safety.
Low noise running, little vibration.
Quick delivery within 20 days.

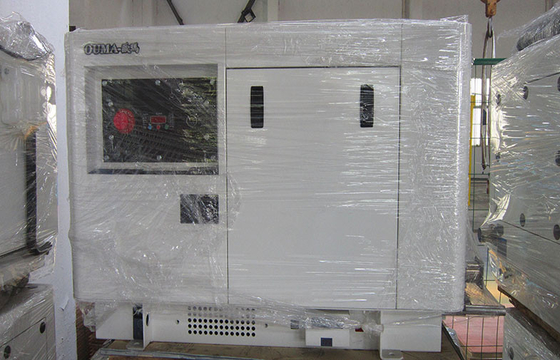

Double layer package. Plastic film and veneer case.
Availability of genuine spare parts.
Competitive price and fast delivery within 20 working days.
15 months or 1200 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
ISO and CE certificated.
All spare parts available.
