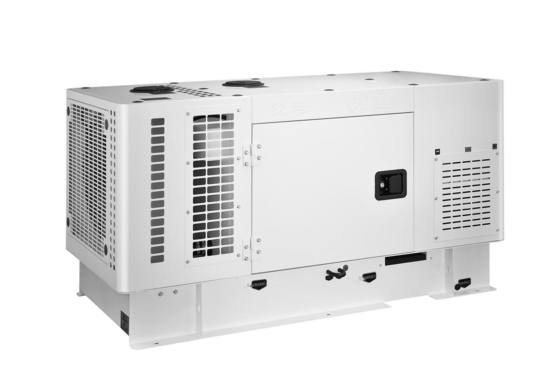

Three Phase 10KW / 12.5Kva Silent Diesel Generator Set Low RPM and Low Noise

Large Image : Three Phase 10KW / 12.5Kva Silent Diesel Generator Set Low RPM and Low Noise Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM10CYD3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

silent diesel generators

portable silent generator

Three Phase 10KW / 12.5Kva Silent Diesel Generator Set Low RPM and Low Noise

Quick Detail:

Three phase ultra silent generator set.
8.5KW(10.6Kva)/ 50Hz, 10KW(12.5Kva)/ 60Hz. Power factor 0.8.
Three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine powered.
70L fuel tank, 15 hours continuous running.
60℃ radiator,62dBA noise level.

Description:

Compact structure and light weight.
Four-cavity design genset housing with excellent ventilation and noise reduction

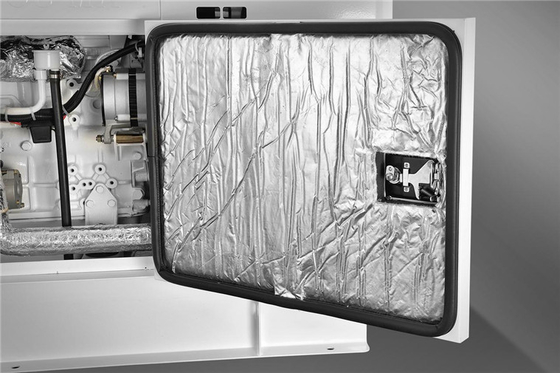

Two big service doors with keys.
Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied..
60℃ radiator adopted, best choice for hot areas.
Assembling bolts are hidden covered by corrosion-resistant rubber cover.
Complete protections and parameter digital display.
2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.
Painting is by electrostatic spraying, no color difference or fading within 5 years.
Relay, fuse and AVR are in one box for easy maintenance or repair.

Applications:

Portable for residential, commercial and industrial use as prime or standby power.

Specifications:

Generator set	Model	OM10CYD3
	Brand	OUMA
	Rated power(KW)	10 12
	Rated voltage(V)	400/230 416/240
	Rated current(A)	18 20.8
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave,distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	60
	Overall dimension (L×W×H)(mm)	≤1670×750×853
	Overall weight(kg)	≤580
	Fuel tank capacity(L)	70
	Continuous running(h)	13

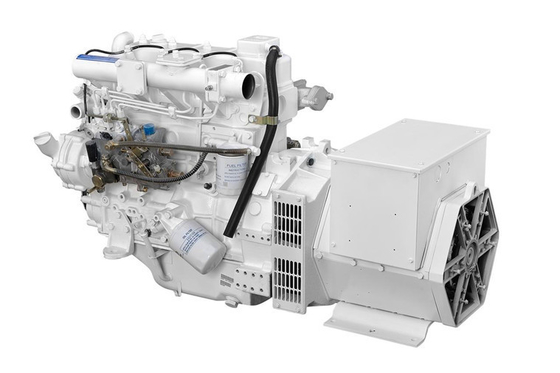

Diesel engine	Model	OM485
	Brand	OUMA
	Power output(KW)	17 20.4
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	1.8
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Upward exhaust
	Radiator size(L)	9
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C3
	Brand	OUMA
	Rated power(KW)	10 12
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase, four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminals
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Our Advantage:

Unique optimized user-friendly design.
Availability of manufacturer genuine spare parts for whole life of the gensets.
Low noise, low vibration,low fuel consumption.
ISO and CE certificate.
Strict in-process control and pre-delivery testing of at least two hours.
15 months or 1200 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
