150kva silent diesel generator set with perkins engine 1106C-E66TAG3

Genset Main Technical Data
3P,50Hz@1500RPM,400/230V(60Hz@1800RPMfor optional)

Genset Model:QSP120GF
Perkins Engine Model:1106C-E66TAG3
Rated power:120KW/150KVA
Standby power:132KW/165KVA

General Features:
● Composed of Perkins diesel engine and Stamford or Yangke alternator
● 24V DC start motor and storage battery
● Brush-less, Self-excited, IP23, insulation class H alternator
● Engine cooling system:water-cooled
● Key start panel control system as standard,digital auto-start panel is optional
● Canopy: Super silent, Normal silent, trailer.
● Optional open type or super silent type, ATS and Standby power: synchronizing/paralleling system.
● Steel base frame with Anti-Vibration mounting, base fuel tank with flexible rubber fuel lube and level indicator.
● Overall sprayed powder coating.
● All generating sets are gone through rigorous testing before being released to the market place,including 50% load, 75% load, 100% load, 110% load and all protection function(over-speed stop, high water temperature, low oil pressure, battery charging failure, emergency stop)

Open frame type
Size (L*W*H, mm) 2645×730×1630
Gross weight: 1550kg

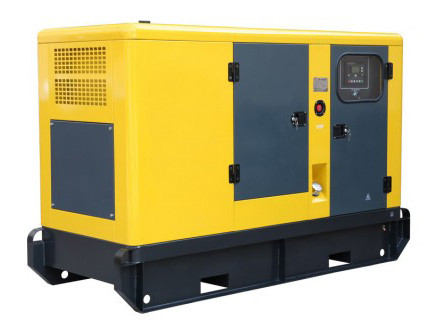

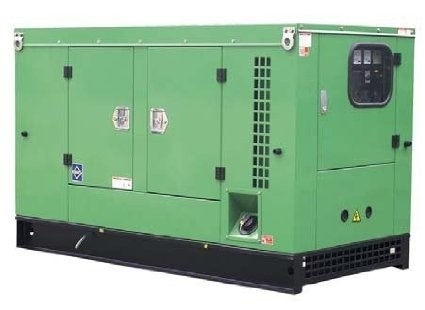

Super silent canopy
Over size (L*W*H, mm) 3450×1150×2065
Gross weight: 2100kg
