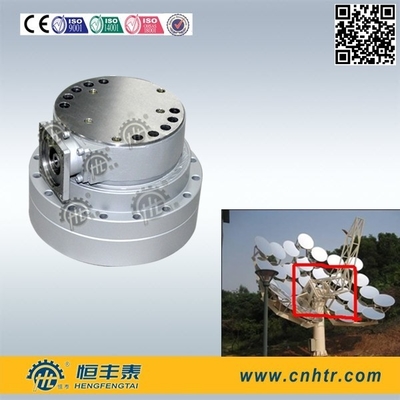

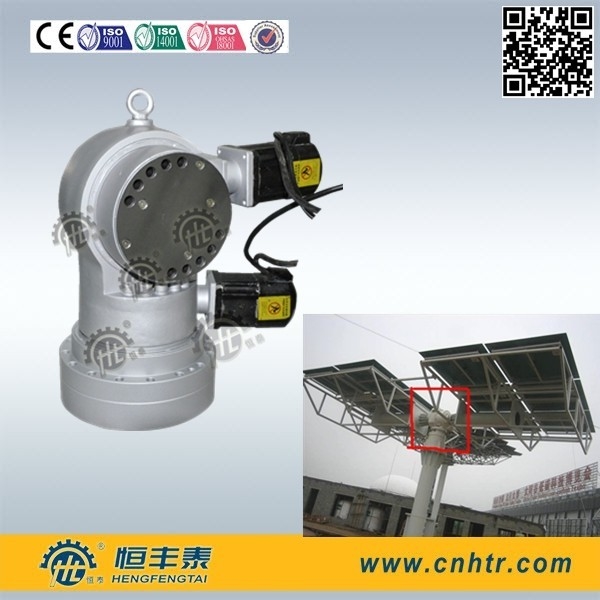

Thermal Solar Tracker Slewing Drive Hdr270 Backlash 0.015 Electric Motor Gearbox

Large Image : Thermal Solar Tracker Slewing Drive Hdr270 Backlash 0.015 Electric Motor Gearbox Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	Hengtai
Certification:	TUV,CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HDR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	STRONG EXPORTING WOODEN CASE WITH PALLETS
Delivery Time:	40-60 days
Payment Terms:	T/T or LC or WESTERN UNION
Supply Ability:	50 PCS PER MONTH

Contact Now

Detailed Product Description

Model:	Hdr30,Hdr50,Hdr100,Hdr190,Hdr270,Hdr470,Hdr600	Application:	Tower,disc,parabolic Solar Power Tracking Drive
Ratio:	8437.4-55372.5	Torque:	3150-62500Nm
Rotate Range:	225-360 Degree	Use Life:	25 Years
High Light:	Electric Gear Motors , Reduction Gear Boxes

Thermal Solar Tracker Slewing Drive Hdr270 Backlash 0.015 Electric Motor Gearbox

Quick Details:

Model	Ratio range	Torque range	Weight (Kg)	Apply for mirrors
HDR30	8438.4-11088	3150-5500	35	>12㎡
HDR50	8438.4-11088	4950-8500	58	15-20㎡
HDR100	40200-40367.5	10190-22500	170	20-40㎡
HDR190	40200-40367.5	18670-44000	340	40-65㎡
HDR270	50250-50417.5	27500-70000	420	65-100㎡
HDR400	50250-50417.5	39900-90000	625	90-120㎡
HDR600	55200-55372.5	62500-110000	800	120-144㎡

Description:

A new generation solar tracker drive device developed by HENGFENGTAI Reducer Mfg Company

With independent intellectual property rights

Output backlash 0.015°

The core transmit parts all are surface hardened and grinded processing precisely.

HDR series output use precision planetary device which realize multi teeth contact mesh output.

In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead,second formed worm drive.

Model/Data	Ratio		Max dynamic torque(N.m)	Max static torque(N.m)	Tilting moment toque	Torsional Stifness (N.m/rad)	Backlash (degree)
HDR30	Horizontal	11088	3150	4500	5500	3.53*10e6	0.015
	Elevation	8348.4
HDR50	Horizontal	11088	4950	7030	8500	5.41*10e6	0.015
	Elevation	8348.4
HDR100	Horizontal	40200	10190	15500	22500	6.84*10e6	0.015
	Elevation	40367.5
HDR190	Horizontal	40200	18670	28290	44000	11.27*10e6	0.015
	Elevation	40367.5
HDR270	Horizontal	50250	27500	45800	70000	23.69*10e6	0.015
	Elevation	50417.5
HDR400	Horizontal	50250	39900	66500	90000	32.07*10e6	0.015
	Elevation	50417.5
HDR600	Horizontal	55200	62500	104000	110000	47.7*10e6	0.015
	Elevation	55372.5
