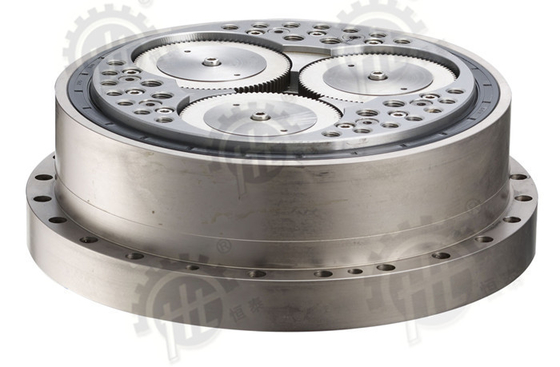

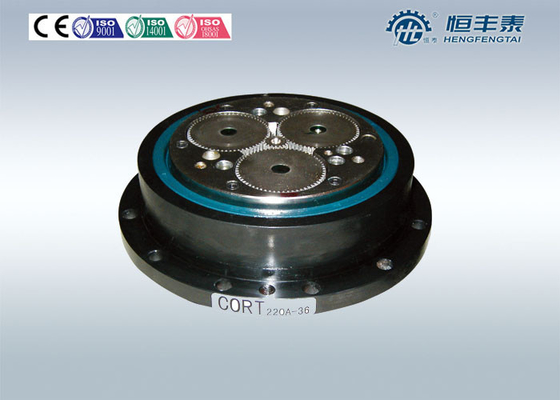

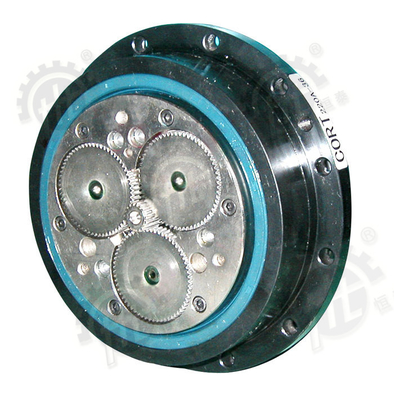

Motoman Servo Electric Motor Gearbox Rv-160E-171-001 For Welding Positioner



Motoman Servo Electric Motor Gearbox Rv-160E-171-001 For Welding Positioner



Quick Details:





Gearing Arrangement: CORT compound Oscillatory Roller Transmission



Output Torque: 150-3800Nm



Place of Origin: Zhejiang, China (Mainland)



Model Number: CORT130-CORT350



Brand Name: HENGTAI



Color: According to customer



Ratio: 40-180



Effiency at transmission: 80~90%



Packing: 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate









Other name:



CORT series industrial robot arm gear reducer



CORT transmission industrial planetary gearbox



CORT compound oscillatory Roller transmission industrial planetary gearbox









Performance characteristics:





1. Multi-tooth meshing-High load capacity



2. Simple Structure. No indispensable output institutions as in cycloid reducer



3. High-speed motor can be connected to drive, and this would be benefit to the requirement of sensitivity



of intelligent control system



4. Basically can achieve rolling meshing, transmission with high efficiency. CORT reducer normally be used



in the speed ratio of (i=40~180),the mechanical efficiency of 80-90%



5. Bigger transmission ratio, compact structure



6. Big output rigidity, slight backlash



7. When do transmission, torque fluctuations less.









Specifications:





Model	Load torque	ratio	dimension
			D	d	c	L	A
CORT130	150	40-100	130	120	120	65	16
CORT160	350	40-120	160	130	130	75	20
CORT220	650	40-130	220	160	160	90	24
CORT250	1400	50-160	250	200	200	100	28
CORT300	2600	55-170	300	250	250	120	34
CORT350	3800	55-180	350	300	300	130	36





Note:



This is preliminary series, and special dimension can be agreed by the customer.







Applications Field:



Industrial robots (welding, stowage, loading)



High-end CNC equipment (machine, pipe bending machine)



Turntable, displacement machine



The printer



Radar antenna positioning device
