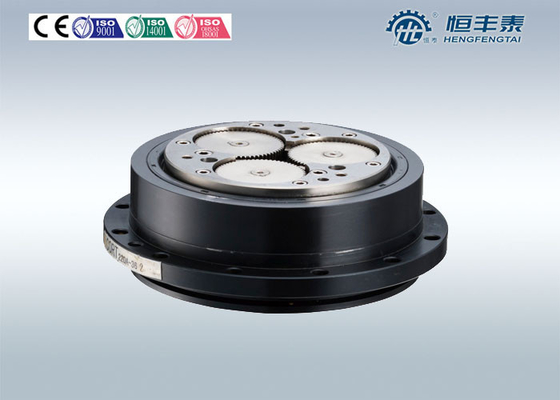

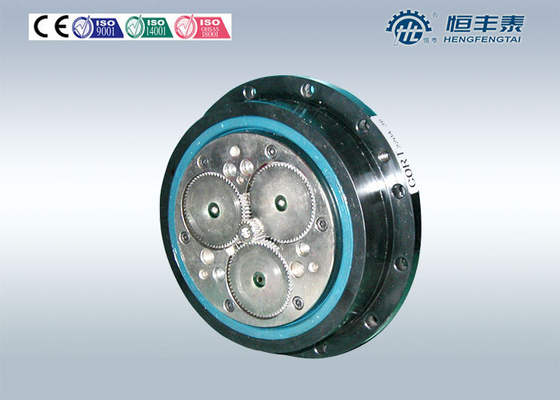

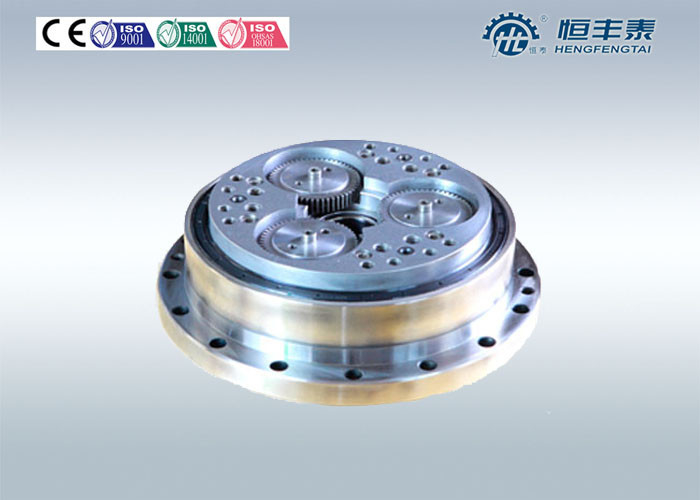

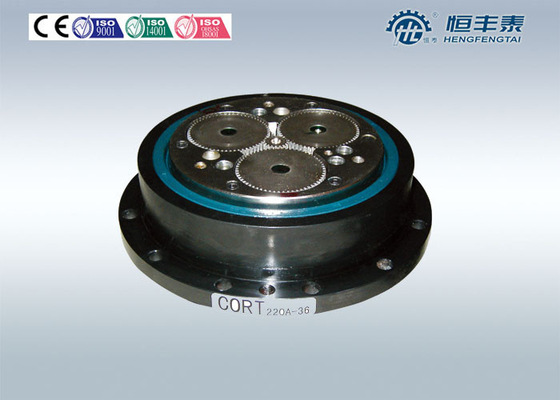

6 Control Axis Robot Arm Electric motor Gearbox Backlash 0.015 Degree

6 Control Axis Robot Arm Electric motor  Gearbox Backlash 0.015 Degree

Quick Details:

• Gearing Arrangement: CORT compound Oscillatory Roller Transmission

• Output Torque: 150-3800Nm

• Place of Origin: Zhejiang, China (Mainland)

• Model Number: CORT130-CORT350

• Brand Name: HENGTAI

• Color: According to customer

• Ratio: 40-180

• Packing: Strong exporting wooden case and pallets

• Other name:



  CORT industrial robot arm gearbox

  CORT transmission gear reducer

  CORT compound oscillatory Roller transmission reducer

Performance characteristics:

1. Multi-tooth meshing-High load capacity

2. Simple Structure. No indispensable output institutions as in cycloid reducer

3. High-speed motor can be connected to drive, and this would be benefit to the requirement of sensitivity

of intelligent control system

4. Basically can achieve rolling meshing, transmission with high efficiency. CORT reducer normally be used

in the speed ratio of (i=40~180),the mechanical efficiency of 80-90%

5. Bigger transmission ratio, compact structure

6. Big output rigidity, slight backlash

7. When do transmission, torque fluctuations less.

Specifications:

Note:

This is preliminary series, and special dimension can be agreed by the customer.

Applications Field:

Industrial robots (welding, stowage, loading)

High-end CNC equipment (machine, pipe bending machine)

Turntable, displacement machine

The printer

Radar antenna positioning device

Solar power systems
