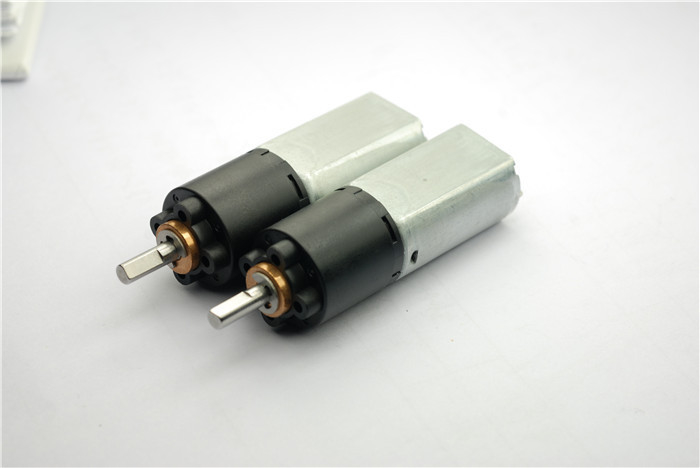

Mini Planetary Electric Motor Gearbox for Monitoring Equipment

Mini Planetary Electric Motor Gearbox for Monitoring Equipment

Specifications

Main Products

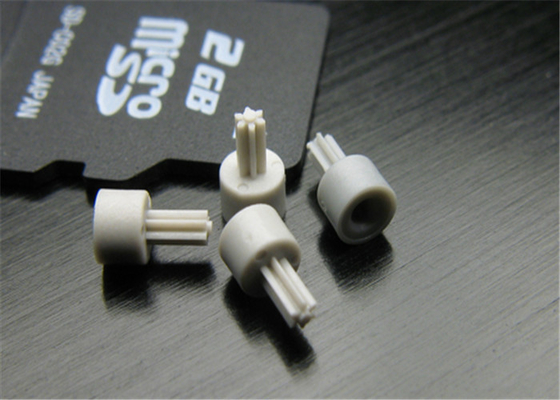

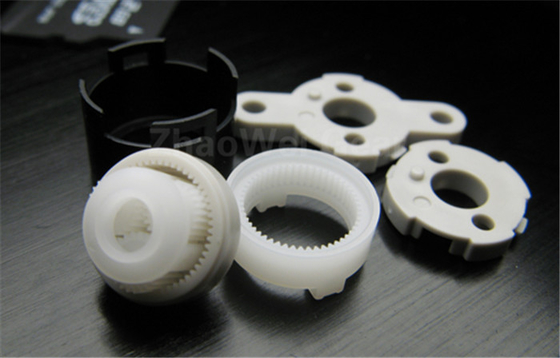

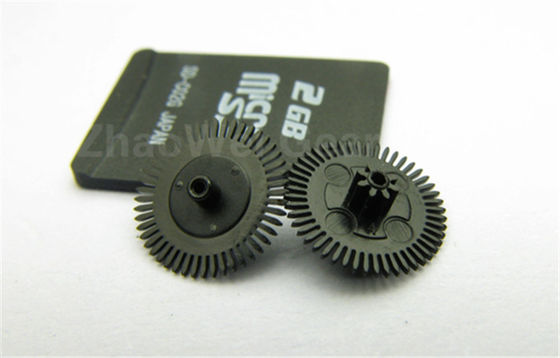

1) Precise component and assembly of plastic and metal powder injection;

2) Precise motor gear box reducer: diameter 4-40mm,

    Output speed: 5-2000rpm,

    Reduction ratio: 2-2000,

    Output torque: 1.0gf-cm to 50Kgf-cm;

3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.

Description

Applications

Automobile unit: head light regulator, braking system

automatic kitchen: fruit and vegetable juice extractor

automatic toilet appliances: dustbin

home appliance: cleaning robot,

instrument & meter: timing system

medical appliance: medical gear pump,

personal care: hair curler, electric toothbrush

security and protection: electric lock,

digital camera: pan tilt

model aero planes and toy: toy car

etc.

Reliability Test

* Noise Test

* Water-proof Test

* Life Test

* Impact Test

* Storage Test

* Salt Spray Test

* Environmental Related Substance.

Payment terms

1) Advance Payment: 50% of tooling.

2) After sending the first sample for testing: 30% payment of tooling

3) Qualified the samples: 20% payment of tooling and samples fee.

  Once we got the 50% tooling payment, we will launch the project and begin production.

The lead time need 45 days.

2D Drawing
