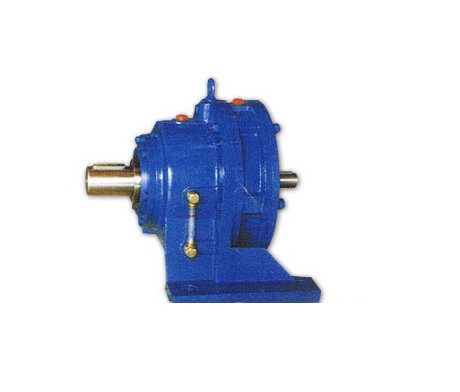

XW Horizontal Pinwheel Cycloidal Speed Reducer with Electric Motor

XW Horizontal Pinwheel Cycloidal Speed Reducer with Electric Motor

Product Description:

High loading capacity, low in temperature rise and the long useful life.

Compact structure, small size, convenient maintenance.

Specifications: single and double

Transmission ratio: single stage 6~87,  double stage 99~7569

Structures: Double-shaft and Direct-joint

Installation: foot and flange

Low noise and smooth running.

Features :

1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.

2, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.

3, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.

4, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.

Our Services:

1. Have many years of production experience.

2. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.

3.  Professional engineers for your design, drawing, ensure the quality of production if non-standard products.

4. The photos and films of production process will be reported to you.

Main Products:

S series helical-worm gear reducer
K series helical-bevel gear reducer

WP series worm gearbox
R series helical gear reducer
F series parallel shaft helical gear units
T spiral bevel gearbox
SWL,JW worm screw jack
H,B rigid tooth flank gearbox
Bucket Elevator Drives
P planetary gear units
RV Worm reducer
B  X Cycloid reducer

Payment and delivery :

1. Payment Term: 30% TT in advance+70% balance before shipment or total advance.

2. The remitter is responsible for the remittance charge.
