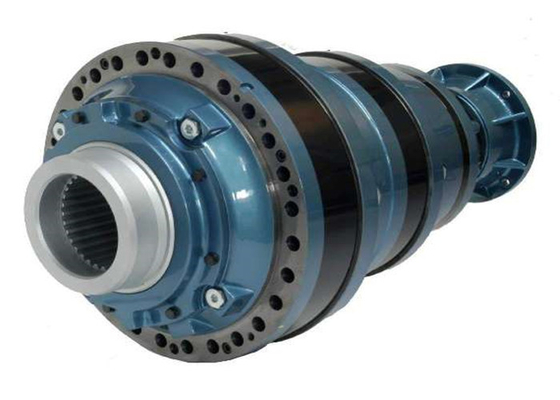

GXZZ Series Low Carbon Planetary Gear Reducer With Large Carrying Capacity

GXZZ series low carbon material for gears Planetary Gear Reducer with the color blue

GXZZ serial introduction:

  MINGDI Brand GXZZ Series Planetary Gear Reducer

 In this series there is many models and which with many kind speed ratio ,I have put the parameter in next form

contrast the form looking for your like and enquiry me .

Specifications:

1. Compact dimension, light-weight

2. Large carrying capacity

3. Stable operation, low noise

4. Reasonable price

- Modular design enable standardization of many basic components, interchangeability improved and quality guaranteed;

- Heavily loaded housing parts are made out of spheroidal graphite cast iron, all other parts are out of grey cast iron to improve the rigidity and shock resistance. Other materials on request

- Reduced costs and weight due to high power density and finely graduated sizes, effective cooling system if need

- Different structures and flexible mounting positions capability

- Compact structure, small volume to save mounting space;

- Sun and planet gears have spur gear teeth are case-hardened and ground. Annulus gears are mostly quenched and tempered and shaped or ground, depending on size. Bevel gears are case-hardened and, depending on size, lapped, HPG-cut or ground. The gears and gear shafts of the primary gear stages have helical teeth and are case hardened and ground. Other materials on request

- High efficiency up to 98%per stage, low noise and temperature, and high precision grade up to 6 or better of ISO1328;

- Gears are all grinded and internal gear ring through nitriding process, gearbox housing through aging treatment then annealing to relieve stress twice, therefore the bearing capacity very high;

- Best China bearings used, may use other bearings like SKF, NSK and FAG, and double-lip oil seal make sure no oil leak;

- Every gearbox 100 percent tested prior to delivery;

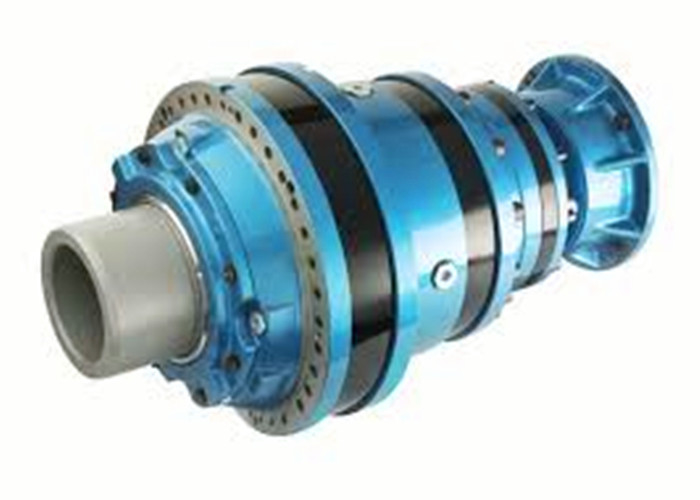

2. Brief Product Introduction & Its Picture Show

The gearboxes can be supplied as motor gearbox units assembled on baseplates for convenience. Electromagnetic brakes, back stops, clutches, couplings and other mechanical devices can be incorporated in the design to give a complete drive unit.

In order to save energy and materials, we ask for the high efficiency and miniaturization to gear.

Overloading, modular, power split and machine of decelerate of hard tooth surface technology is

 the development trend. The planetary gear set these features at a suit, modular development has

 made the domestic JB1799-76 and JB/T6502-93 standard of planetary-units replaced by the Flemish companies gradually. In order to adapt to market demand, improve

the market share quickly, we refer to the Flemish P series, development modular planetary gear units.

3. Company Profile & Workshop Corner Show

Changzhou Mingdi Machinery Co., Ltd is a professional transmission machinery manufacturer of

 producing various gears, gear transmission and reducers, the hardened-tooth-surface cylindrical gearbox that is our featured product is widely used in four fields, among which

 are electrical machinery, plastic extrusion machinery, railway engineering machinery and metallurgical

machinery industry.

Applications:

Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting,

transportation, textile, paper marking, food, plastic, rubber, engineering machinery, and energy industry.

Our Competitive Advantages:

1. Ability to produce customerized products as request.

2. Complete processing & testing equipment.

      3. Quality is our culture; quality is the soul of enterprise.

4. Competitive price: we can give you an edge over your competitor.

5. We ensure we will make immediate response on your enquires and any queries in 12 hours.
