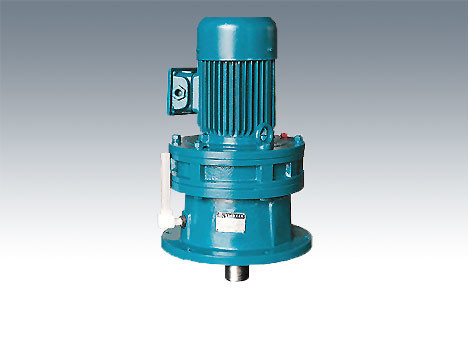

Custom Gear Reduction Box Speed Reducer XL Vertical Gearbox with Motor

Custom Gear Reduction Box Speed Reducer XL Vertical Gearbox with Motor

Features :

1. X series cycloidal gearmotor is a reducer designed by cycloid needle teeth coupled planetary transmission principle. simple structure, convenient maintenance

2. Cast iron housing,compact construction,steady running,high efficiency

3. The products have been mainly used in machinery fields, such as chemical agitator, metallurgy, mine transmission,printing and packaging,brick,leather,etc.

+ Mechanical efficiency: ≥95%;

+ Input form: direct motor input, flange input, shaft input;

+ Materials of speed reducer body: HT200 cast iron;

+ Materials of shaft and cyclo-wheel: GCr15 high-carbon chromium steel;

+ Heat treatment: quenching;

+ Large speed reduction ratio: up to 6177:1(two-stage)

+ Noise of speed reducer: ≤50dB;

+ Backlash of speed reducer: ≤60arc.min.

Advantages :

1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.

2, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.

3, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.

4, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size

Images:

Our Services:

1. The photos and films of production process will be reported to you.

2.  Professional engineers for your design, drawing, ensure the quality of production if non-standard products.

3. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.

Main Products:

WP series worm gearbox
R series helical gear reducer
S series helical-worm gear reducer
K series helical-bevel gear reducer
F series parallel shaft helical gear units
T spiral bevel gearbox

Bucket Elevator Drives
P planetary gear units
RV Worm reducer
B  X Cycloid reducer
SWL,JW worm screw jack
H,B rigid tooth flank gearbox


Payment and delivery :

1. The working time is about 3-7 working days from receive payment.

2. Payment Term: 30% TT in advance+70% balance before shipment or total advance.
