22.5KVA / 50hz Very Quiet Diesel RV Generator Small Size Low Noise
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Power(KW): | 18 20 | Engine Displacement(L): | 2.6 |
|---|---|---|---|
| Diesel Engine Filter System: | Dry Air Filter, Fuel Filter, Oil Filter | Genset Colour: | White, Blue Or Customized |
| Engine Brand: | FAWDE, Kubota, Perkins, Cummins Or Customized | Alternator Brand: | Stamford Or Stamford Copy |
Very Quiet Diesel Generator for LED Advertising Truck or Recreational Vehicle Application
OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share. Where is LED media vehicle, where is OUMA generator!
Quick Detail:
| Model | Rated power(kw) | Overall dimension (L×W×H)(mm) |
Diesel engine type | Engine starting mode | Alternator number of phase |
| OM18CY3 |
18kw / 50hz 20kw / 60hz |
≤ 1550x780x950 |
Four cylinder, direct injection, four stroke |
12V DC | Three phase four wire |
Description:
- 60℃ radiator is used on all gensets so they can be used in all weather conditions

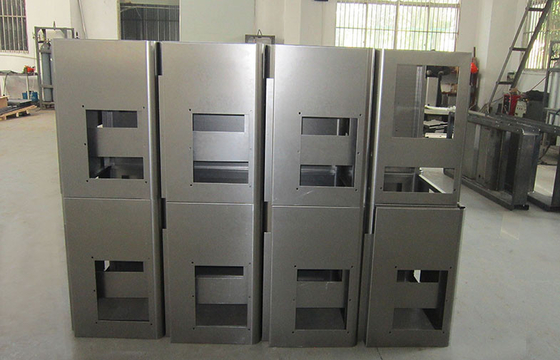

- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
- Relay, fuse and AVR are in one box for easy maintenance or repair.
- Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- Assembling bolts are hidden covered by corrosion-resistant rubber cover.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Details:

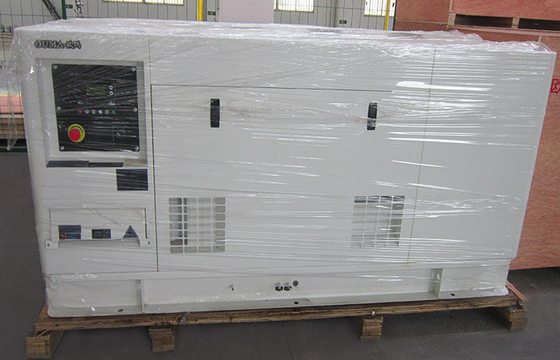

Ouma Generator Set
Specifications:
| Generator Set | Model | OM18CY3 |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 32.4 34.6 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM183C3 |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |

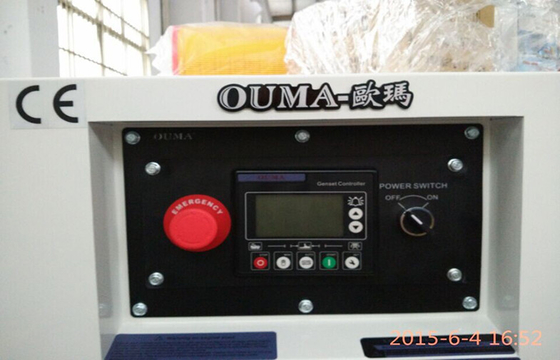

Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
Low noise, small size, good cooling, the three most difficutl aspects for gensets manufacturers, we have made it and we are proud of it!
In order to marketing our products better in the peak season, our management made new promotion policies. Once you purchase our products over 600 units / year, we are willing to provide you a free LED advertising truck.
