Diesel RV Generator 12KW / 12KVA ISO, CE, SONCAP approval

Large Image : Diesel RV Generator 12KW / 12KVA ISO, CE, SONCAP approval Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM12CY

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	50 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

Genset Rated Power(KW):	13.6kw / 50hz ,15kw / 60hz	Noise Level(dB@7m):	62
Diesel Engine Type:	Four Cylinder, Direct Injection, Four Stroke	FAWDE Engine Cooling Type:	Enclosed Water-cooled
Engine Starting Mode:	12V DC	Alternator Excitation Mode:	Brushless, Self-excitation

12KW / 12KVA Water-cooled Low Noise Diesel Generators Powered by Chinese First Top FAWDE Engine

Adopt the first top Chinese or international brand engines, alternators and control panels. Second biggest customer(Himoinsa first) for FAWDE.
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi.

Quick Detail:

Model:OM12CY Brand:OUMA

Rated output: 13.6kw / 50hz , 15kw / 60hz Rated Frequency: 50Hz / 60Hz
Rated Voltage: 115 / 230V or 120 / 240V Rated Current: 118 / 59.1A or 125 / 62.5A
Alternator Interference Factor: TIF＜50,THF＜2% Alternator Rotation Speed(R/M):1500 1800

Applications:

Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.

Ouma Generator Set

Diesel RV Generator 12KW / 12KVA ISO, CE, SONCAP approval

Specifications:

Generator Set	Model	OM12CY
	Brand	OUMA
	Rated power(KW)	13.6 15
	Rated voltage(V)	115/230 120/240
	Rated current(A)	118/59.1 125/62.5
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1410x780x950
	Fuel tank capacity(L)	None

Ouma Engine & Alternator

Diesel RV Generator 12KW / 12KVA ISO, CE, SONCAP approval

Diesel Engine	Model	OM492
	Brand	OUMA FAWDE
	Power output(KW)	17 20.4
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	1.8
	Bore×Stroke(mm)	92×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM184
	Brand	OUMA
	Rated power(KW)	13.6 15
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase,three wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22

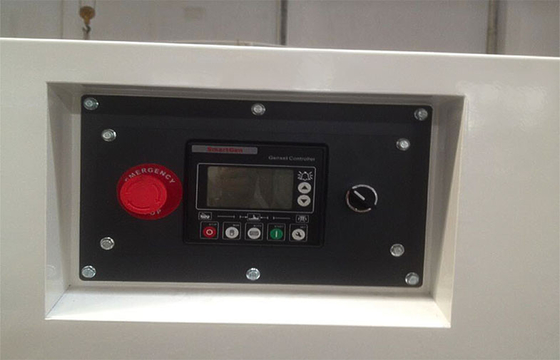

Ouma Control Panel

Diesel RV Generator 12KW / 12KVA ISO, CE, SONCAP approval

Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Complete display of main parameters and protections on the control panel.

4. Four hours testing before out factory and CCIB inspection.

5. Above 90% market share in LED media vehicle use in Chinese market.

6. 15 months or 1000 running hours warranty, whichever comes first.

7. ISO and CE certificated.

FAQ:

1.Q: What is your MOQ of this item?

A: 1-10PCS

2.Q: What is the lead time?

A: 15-20 working days after receiving your L/C or TT deposit.

4.Q: Where is your Loading Port?

A: Ningbo, Shanghai, China Port.

5.Q: What are your payment terms?
