Three Phase Low Noise Diesel Generator for Recreational Vehicle 12KW / 15KVA
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Waveform Distortion: | Sinewave, Distortion ≤5% | Overall Dimension (L×W×H)(mm): | ≤ 1410x780x950 |
|---|---|---|---|
| Diesel Engine Power Output(KW): | 17 20.4 | FAWDE Engine Cooling Type: | Enclosed Water-cooled |
| Alternator IP Grade: | IP22 | Alternator Excitation Mode: | Brushless, Self-excitation |
| High Light: | portable diesel generator,diesel power generator |
||
12KW / 15KVA Water-cooled Diesel RV Generator Powered by Four Cylinder, Four Stroke FAWDE Engine
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. OUMA is the second biggest customer(Himoinsa first) for FAWDE engine in genset application.
Quick Detail:
| Model | Rated power(kw) | Rated current(A) | Rated voltage(V) | Engine brand | Alternator brand |
| OM12CY3 |
13.6kw / 50hz 15kw / 60hz |
24.5A / 50hz
27A / 60hz |
400/230 416/240 | FAWDE | Copy Stamford |
Description:
1, We use 60 degree radiator, while others use 40 degree type, the effect and cost is big difference.
2, 1200 ℃ high temperature resistant and fireproof speical high quality sponge, while others use common sponge, cost is more than double, which is safe .
3, We are using 8 antivibration dampers, not most factories are using 4.
4, Forklift slots can be standard for us without extra charge to you, other factories are optional with additional charge.
5, Assembling bolts are hiden with weather proof rubber, so no rust would happen and also enhanse aesthetic looking.
6, Battery switch, so as to keep battery not loosing power while in genset is long time no use.
7, We have equipped with fuel retainer valve to make sure of easy startups after long time of no use the genset.
8, And other addition configuration which is not available with other factories.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Details:

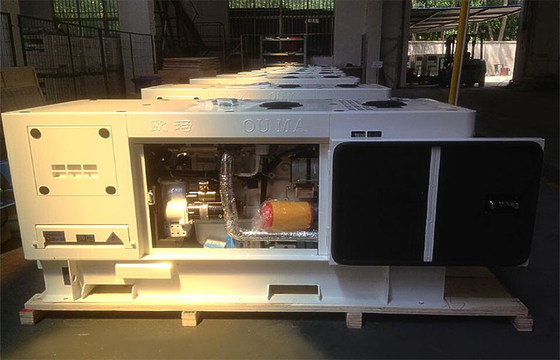

Ouma Generator Set
Specifications:
| Generator Set | Model | OM12CY3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 24.5 27 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1410x780x950 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM492 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 92×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184 -3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Complete display of main parameters and protections on the control panel.
4. samallest size and perfect cooling system

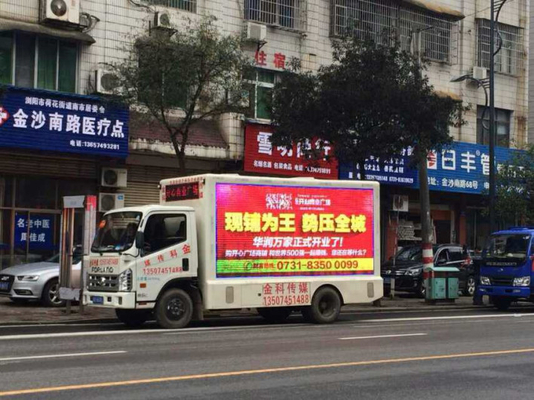

5. Above 90% market share in LED media vehicle use in Chinese market.
6. ISO and CE certificated.
