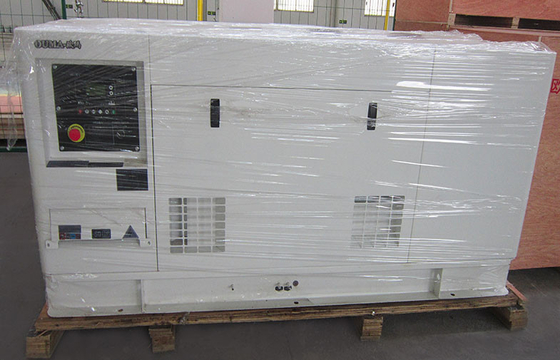

High Configuration Excellent Cooling System Small Size 18KW / 1500rpm Diesel RV Generator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Power(KW): | 18 20 | Fuel Tank Capacity(L): | None |
|---|---|---|---|
| Diesel Engine Power Output(KW): | 25 30 | Engine Governor System: | Mechanical |
| Engine Oil Capacity(L): | 10 | Alternator Number Of Pole: | 4 |
| High Light: | portable diesel generator,diesel power generator |
||
Low Noise Weatherproof Diesel RV Generator for Residential and Commercial Application
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. OUMA is the second biggest customer(Himoinsa first) for FAWDE engine in genset application.
Quick Detail:
| Model | Rated power(kw) | Rated current(A) | Rated voltage(V) | Engine brand | Alternator brand |
| OM18CY |
18kw / 50hz 20kw / 60hz |
156/78.2 166/83 |
115/230 120/240 | FAWDE | Copy Stamford |
Description:
- 6-25kW powered by first top Chinese engine OUMA FAWDE or international brand Kubota.
- Remote control with cable in driving cab.
- Downward air inlet and exhaust, same to the vehicles.
- Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50%, THF＜2%, IP22.
- Complete display of main parameters and protections on the control panel.
- Unique noise reduction technology, noise of silent gensets is within 62 dbA.
- Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Details:
Ouma Generator Set
Specifications:
| Generator Set | Model | OM18CY |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 156/78.2 166/83 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM183C |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request

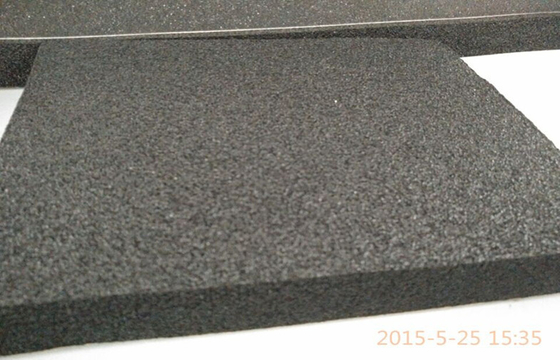

3. 1200 ℃ high temperature resistant and fireproof speical high quality sponge
4. samallest size and perfect cooling system

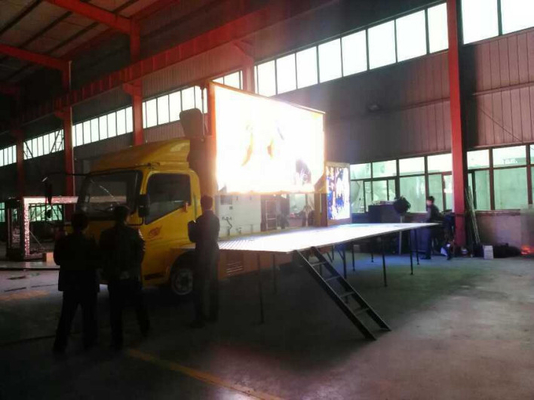

5. Above 90% market share in LED media vehicle use in Chinese market.
6. ISO and CE certificated.
