Soundproof Diesel RV Generator FAWDE Powerful Three Cylinder Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | portable diesel generator,diesel power generator |
||
|---|---|---|---|
Diesel 6KW - 9KW Soundproof Recreational Vehicle Generators Single Phase Three Wire
Quick Detail:
- Product name: Recreation Vehicle RV Generator.
- Single phase
- 6KW/ 50Hz, 9KW/ 60Hz. Single or dual AC voltage
- Driven by powerful three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
- Shared fuel tank with the vehicle.
- Integrated all-in-one type, easy connection and installation
Features:
- 6-25kW powered by first top Chinese engine OUMA FAWDE or international brand Kubota.
- Remote control with cable in driving cab.
- Downward air inlet and exhaust, same to the vehicles.
- Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50%, THF＜2%, IP22.
- Complete display of main parameters and protections on the control panel.
- Unique noise reduction technology, noise of silent gensets is within 62 dbA.
- Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.

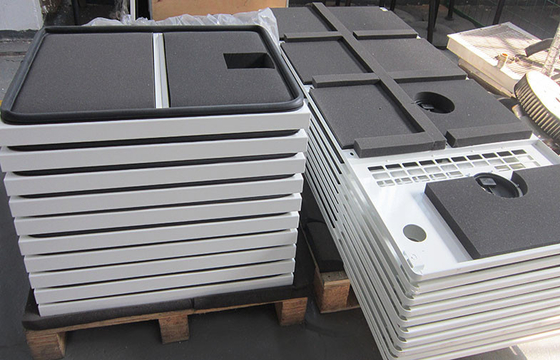

- Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
- 60℃ radiator is used on all gensets so they can be used in all weather conditions
- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
- Relay, fuse and AVR are in one box for easy maintenance or repair.
- Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- Assembling bolts are hidden covered by corrosion-resistant rubber cover.
Applications:

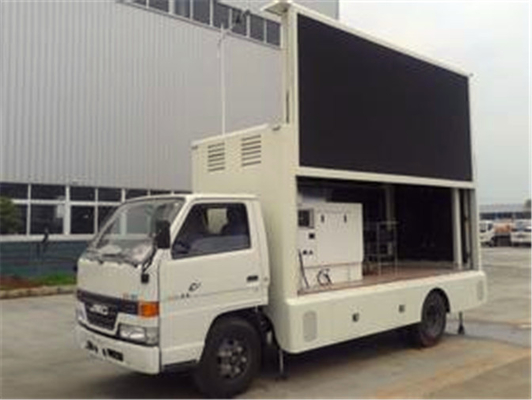

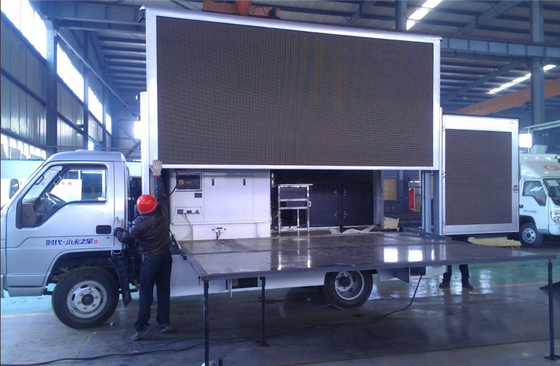

Power source for small recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specification:
| Generator Set | Model | OM6CY |
| Brand | OUMA | |
| Rated power(KW) | 6 9 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 52.1/26 75/37.5 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1270x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |
Specification:
| Diesel Engine | Model | OM385 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Specification:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm | |
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Solve your technical problems in 24 hours and provide international warranty service,15 months or 1000 running hours warranty, whichever comes first.
2. Genuine spare parts supplied for whole life of the generator
3. Electrostatic painting for appearance protecting for shining and raining
4. Pre-delivery running testing and inspection
5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
6, ISO, CE certificate.
7, ISO and CE certificated.
