24V DC Start Motor Diesel RV Generator Three Cylinder Diesel Engine Portable 6KW - 9KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | rv diesel generator,portable diesel generator |
||
|---|---|---|---|
24V DC Start Motor Diesel RV Generator Three Cylinder Diesel Engine Portable 6KW - 9KW
Quick Detail:
- Three phase Recreation Vehicle Generator.
- 6KW 50Hz or 9KW 60Hz.
- Powered by three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
- Share fuel tank with the vehicle.
- Integrated one-in-all type, quick connection and installation
Description:
Three cylinder engine powered, ensuring sufficient power.
Conintuous running without fatigue or overheat.
Reliable and durable.
Bottom air inlet and downward exhaust avoid high temperature in vehicle cabinet.
Low noise running to alleviate annoyance to the residents.
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm.
Applications:
With this compact and lightweight attractive RV generator, you can runn the electric appliances on your small RV and enjoy good time.
Specifications:
| Generator Set | Model | OM6CY3 |
| Brand | OUMA | |
| Rated power(KW) | 6 9 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 10.8 16.2 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1270x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM385 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C3 |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Quick installation and connection.
- Low noise running within 62dBA at 7meters
- Trailor-made design.
- Easy accessibility for maintenance.
- 1 year or 1000 hours running limited warranty.

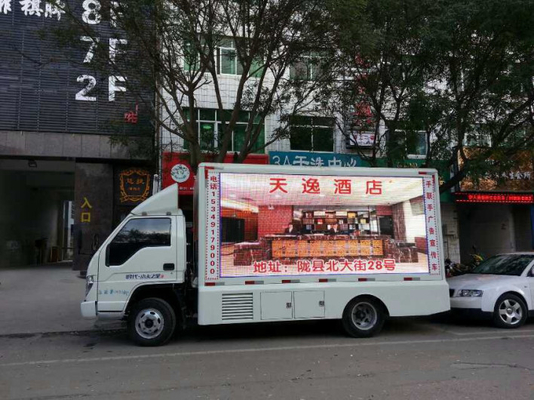

- Above 90% market share in LED media vehicle use in China.
