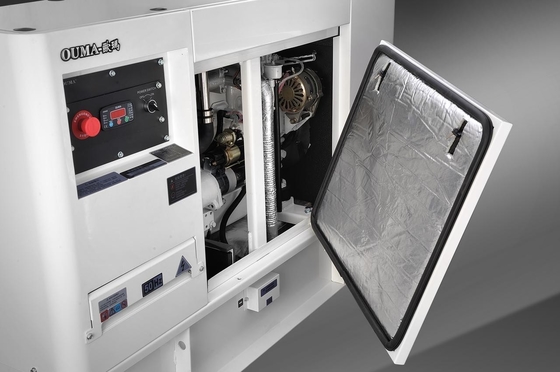

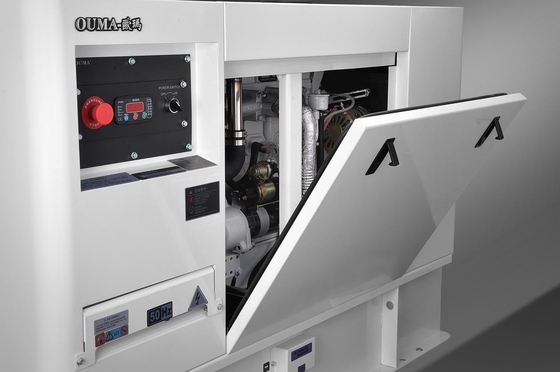

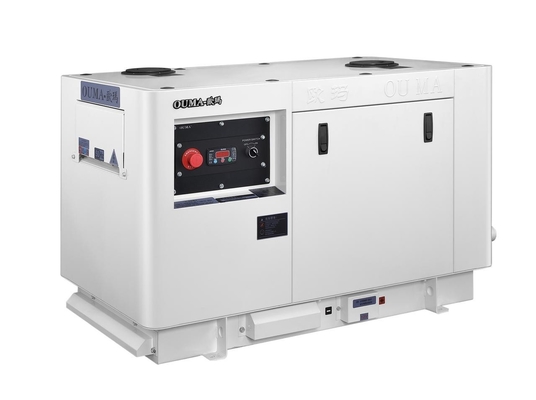

Low Noise Energy Saving Diesel RV Generator for Bus / Mobile Medical Vehicle 20KW - 24KW

Large Image : Low Noise Energy Saving Diesel RV Generator for Bus / Mobile Medical Vehicle 20KW - 24KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM20CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

rv diesel generator

diesel power generator

Low Noise Energy Saving Diesel RV Generator for Bus / Mobile Medical Vehicle 20KW - 24KW

Quick Detail:

Product Name: Low Noise Diesel RV Generator
Phase: Three phase
Rated Power: 20KW/ 50Hz, 24KW/ 60Hz.Three phase 230V/400V or as per customer request.
Engine : Driven by powerful three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
None fuel tank, direct connect to vehicel fuel tank.
Integrated one-in-all type, easy connection and installation
Good quality,Fast delivery and Competitive price
CE,ISO approved

Description:

Compact structure, light weight
Sinewave output with distortion ≤5%.
Four cylinder 2.6L water-cooled diesel engine
60℃ radiator
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.

Applications:

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:

Generator Set	Model	OM20CY3
	Brand	OUMA
	Rated power(KW)	20 24
	Rated voltage(V)	400/230 416/240
	Rated current(A)	36 41.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1550x780x950
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM498
	Brand	OUMA FAWDE
	Power output(KW)	25 30
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.6
	Bore×Stroke(mm)	98×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	10
Alternator	Model	OM184C3
	Brand	OUMA
	Rated power(KW)	20 24
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage
