15KW / 17KW Single Phase Super Silent Diesel RV Generator 62dbA at 7 Meters
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | portable diesel generator,diesel power generator |
||
|---|---|---|---|

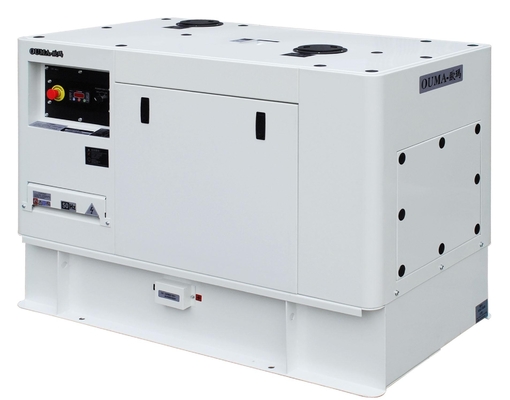

15kw Single Phase Super Silent Diesel RV Generator 62dbA at 7 Meters
Quick Detail:
- Single phase Diesel RV Generator.
- 15KW/ 50Hz, 17KW/ 60Hz. Single or dual AC voltage
- Powerful four cylinder, 21kw/1500rpm, 25kw/1800rpm diesel engine.
- Shared fuel tank with the vehicle.
- Integrated one-in-all type, easy connection and installation
Description:
15KW power output, meet electricitiy requirement of the whole unit RV.
Less than 5% sinewave distortion output safe to run your sensitive electronic equipments.
Less than 62dBA noise level keep a quiet environment.
Compact structure small size reduce installation space requirement.
Powerful four cylinder engine bring sufficient power drive with extra.
Brushless, self-excitation, auto voltage regulation deliver stable electricity.
Complete protection and parameter display let you feel at ease.
Applications:

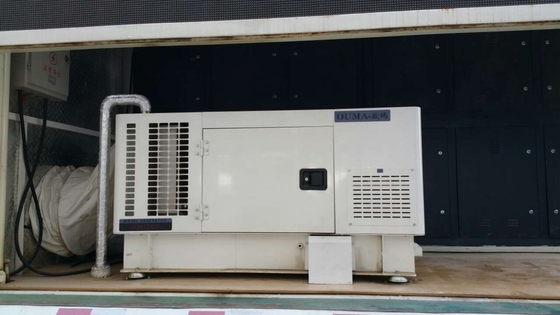

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specifications:
| Generator Set | Model | OM15CY |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 130/65.2 141/70.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1410x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM495 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 21 25 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.2 | |
| Bore×Stroke(mm) | 95×105 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 9 | |
| Alternator | Model | OM184 |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |

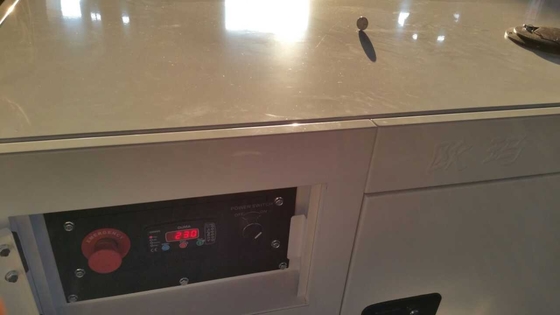

| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory
5. ISO9001 and CE certification
