18KW - 20KW Recreational Vehicle Generators FAWDE engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
18KW - 20KW Recreational Vehicle Generators FAWDE engine + copy Stamford alternator
Quick Detail:
- Single phase Recreation Vehicle Generator.
- 18KW/ 50Hz, 20KW/ 60Hz. Single or dual AC voltage
- Driven by powerful 40HP diesel engine.
- Shared fuel tank with the vehicle.
- Integrated one-in-all type, easy connection and installation
Description:
1, 60℃ radiator,while others use 40 degree type, the effect and cost is big difference.
2, 62 dbA noise level, quiet enough to leave the users and neighbourhood a good living
environment.
3, Four-caviry design of genset housing.
4, 1200℃ fireproof & noise absorption sponge with SGS.
5, Forklift slots can be standard for us without extra charge.
6, Assembling bolts are hiden with weather proof rubber.

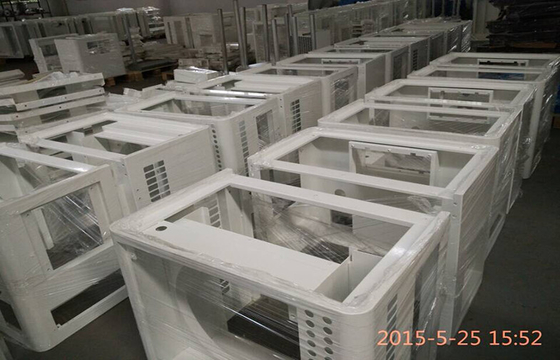

7, 2.0mm cold-rolled steel soundproof canopy
8, Battery switch, fuel non-return valve, 8 shockproof dampers, central AC cooling fan with 20,000 hours service life, etc.
9, All spare parts avaliable
Quality assurance :
Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset shall be put into commission more than 2 hours totally.
They are tested on idle load, fully load and 10% overload
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked.
5, Rain,low and high temperature test.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:
Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specifications:
| Generator Set | Model | OM18CY |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 156/78.2 166/83 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None | |

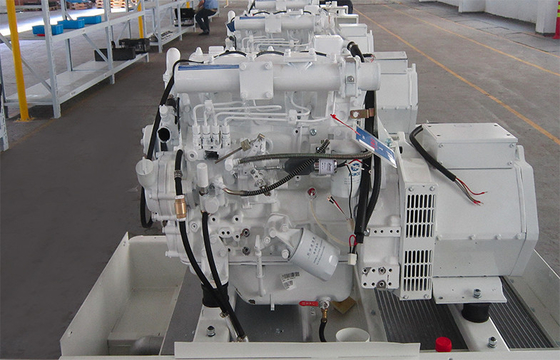

| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM183C |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |

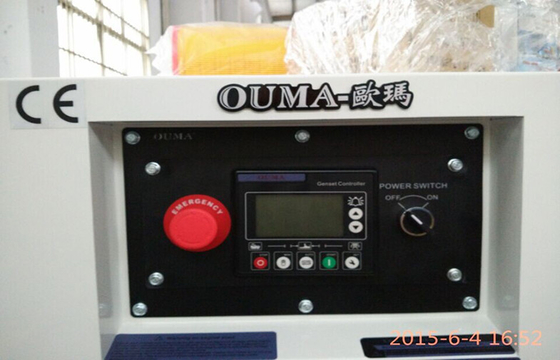

| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Company overview
Workshop vision
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Removable service doors.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Above 90% market share in LED media vehicle use in China.
FAQ:
1.Q: What is your MOQ of this item?
A: 1-10PCS
2.Q: What is the lead time?
A: 15-20 working days after receiving your L/C or TT deposit.
4.Q: Where is your Loading Port?
A: Ningbo, Shanghai, China Port.
5.Q: What are your payment terms?
A: T/T or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50 pieces per day against your orders.
Contact information:
Factory Address: Southeast to Crossing of Xidong Avenue
and Xisha Road, Wuxi, Jiangsu, China
Tel : 86-510-88609781
E-mai : sales@oumagenerator.com
B2B web : www.diesel-rv-generator.com
