6KW / 1500RPM 9KW / 1800RPM Low Noise Recreational Vehicle Generators
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Waveform Distortion: | Sinewave, Distortion ≤5% | Overall Weight(kg): | ≤480 |
|---|---|---|---|
| Alternator Excitation Mode: | Brushless, Self-excitation | Diesel Engine Starting Mode: | 12V DC |
| Fuel Consumption(g/kw.h): | ≤220 | Alternator Number Of Phase: | Three Phase Four Wire |

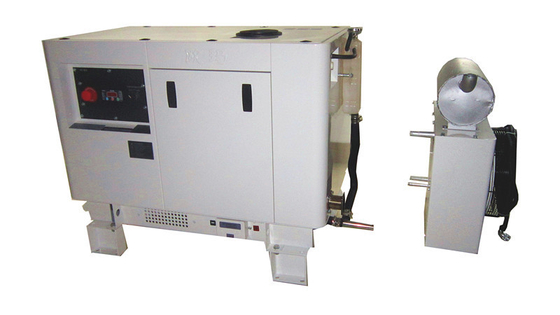

6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator
Description:
- Portable RV Generator
- Rated power(KW): 6KW - 9KW
- Rotation speed(r/m):1500r/m - 1800r/m
- Rated frequency(Hz): 50Hz - 60HZ
- Compact structure, light weight
- Sinewave output with distortion ≤5%.
- Three cylinder 1.2L water-cooled diesel engine
- 12V DC electric starting.
- Dry air filter, fuel filter, oil filter
- Mechanical governing.
- Enclosed water cooling.
- Bottom air inlet and exhaust muffler.
- Brushless, self-excitation;auto voltage regulation.
- 125℃ temperature rise, H grade insulation, IP 22.
- TIF＜50,THF＜2%.
- Complete protections and parameter digital display.
Applications:
Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Ouma Generator Set
Specifications:
| Generator Set | Model | OM6CYF3 |
| Brand | OUMA | |
| Rated power(KW) | 6 9 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 10.8 16.2 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1070x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |

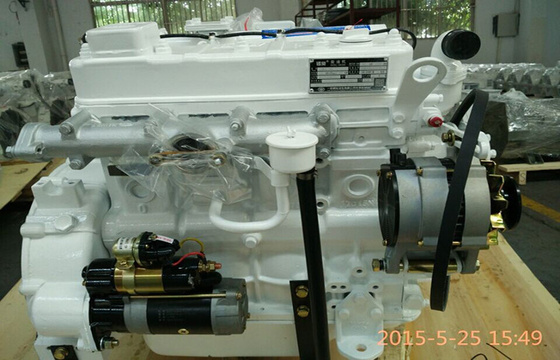

Ouma Engine & Alternator
| Diesel Engine | Model | OM380 |
| Brand | OUMA | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Radiator installation | Independent built-out | |
| Radiator dimension (L×W×H)(mm) |
620x510x340 | |
| Muffler installation | Independent built-out | |
| Water tank capacity(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164CZ3 |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection.
5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma. 6. 15 months or 1000 running hours warranty, whichever comes first.
7. ISO and CE certificated.
