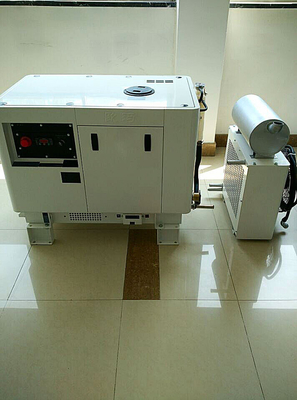

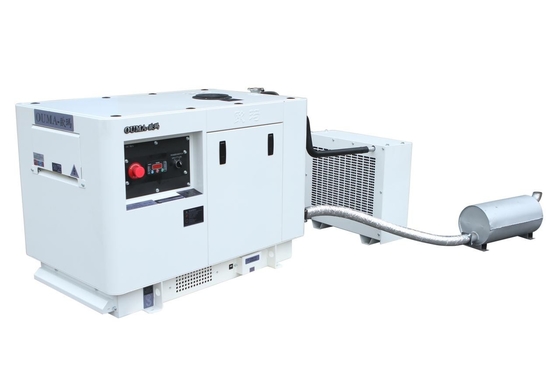

6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator

Large Image : 6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM6CYF3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	50 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

Genset Waveform Distortion:	Sinewave, Distortion ≤5%	Overall Weight(kg):	≤480
Alternator Excitation Mode:	Brushless, Self-excitation	Diesel Engine Starting Mode:	12V DC
Fuel Consumption(g/kw.h):	≤220	Alternator Number Of Phase:	Three Phase Four Wire
High Light:	RV generators , vehicle generators

6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator

Description:

Portable RV Generator
Rated power(KW): 6KW - 9KW
Rotation speed(r/m):1500r/m - 1800r/m
Rated frequency(Hz): 50Hz - 60HZ
Compact structure, light weight
Sinewave output with distortion ≤5%.
Three cylinder 1.2L water-cooled diesel engine
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.

Applications:

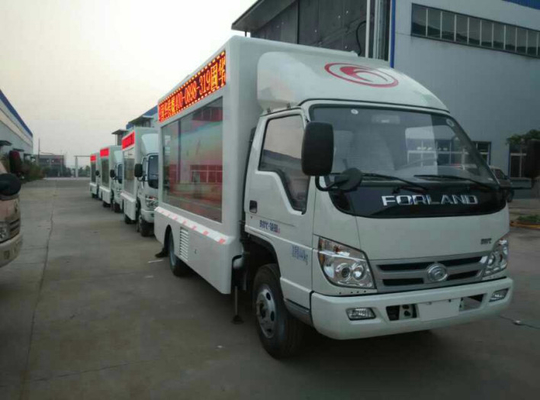

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Ouma Generator Set

6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator

Specifications:

Generator Set	Model	OM6CYF3
	Brand	OUMA
	Rated power(KW)	6 9
	Rated voltage(V)	400/230 416/240
	Rated current(A)	10.8 16.2
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1070x680x750
	Overall weight(kg)	≤480
	Fuel tank capacity(L)	None

Ouma Engine & Alternator

6 KW / 7.5 KVA Low Noise Diesel Powered Generators Copy Stamford Alternator

Diesel Engine	Model	OM380
	Brand	OUMA
	Power output(KW)	10 12
	Type	Three cylinder, direct injection, four stroke
	Displacement(L)	1.2
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Radiator installation	Independent built-out
	Radiator dimension (L×W×H)(mm)	620x510x340
	Muffler installation	Independent built-out
	Water tank capacity(L)	9
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164CZ3
	Brand	OUMA
	Rated power(KW)	8.5 10
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22

Ouma Control Panel

Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built and remote cable connected
	Remote conrol w/ cable(M)	12
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection.

5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma. 6. 15 months or 1000 running hours warranty, whichever comes first.

7. ISO and CE certificated.
