Pro-environment Diesel Generators for LED advertising Truck 10 KVA Single Phase
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Overall Dimension (L×W×H)(mm)（KW）: | ≤1232x680x750 | Overall Weight(kg): | ≤480 |
|---|---|---|---|
| Diesel Engine Type: | Four Cylinder, Direct Injection, Four Stroke | Diesel Engine Governor System: | Mechanical |
| Fuel Consumption(g/kw.h): | ≤220 | Alternator Number Of Phase: | Single Phase Three Wire |
| High Light: | RV generators,vehicle generators |
||

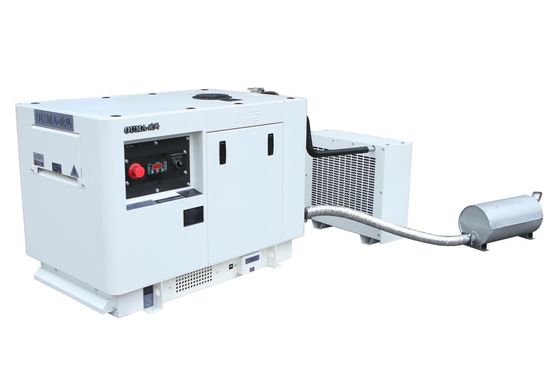

10KW / 50HZ - 12KW / 60HZ Low Fuel Consumption 62dbA Low Noise Level Recreational Vehicle Generators for Split Type
OUMA FAWDE series RV generators are powered by China first top engine FAWDE. As the second biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.

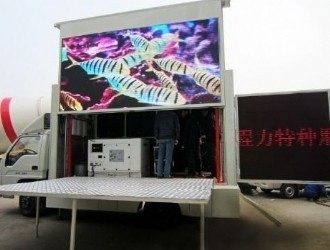

In China, OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share. Where is LED media vehicle, where is OUMA generator!

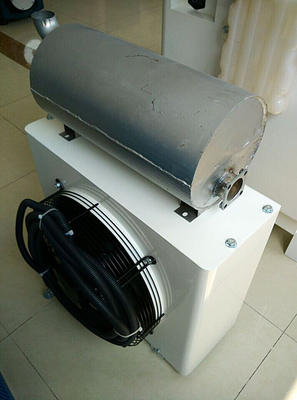

With external muffler and radiator, installation is more felexible. You can install the generator in a very small space, while muffler and radiator in any possible location of the vehicle. Cool and safe!
Quick Detail:
- Single Phase Recreation Vehicle Generator.
- Generator Set Rated voltage(V) 115/230 , 120/240
- Powered by four cylinder, 15kw/1500rpm, 17.6kw/1800rpm diesel engine.
- Share fuel tank with the vehicle.
- Noise level(dB@7m) : 62
Applications:
Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Ouma Generator Set
Specifications:
| Generator Set | Model | OM10CYF |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 86.9/43.4 100/50 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1232x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM488 |
| Brand | OUMA | |
| Power output(KW) | 15 17.6 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.5 | |
| Bore×Stroke(mm) | 88×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Radiator installation | Independent built-out | |
| Radiator dimension (L×W×H)(mm) |
620x510x340 | |
| Muffler installation | Independent built-out | |
| Water tank capacity(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164CZ |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
Competitive Advantage:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection.
5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
6. Remote control with cable in driving cab.
7. Independent external muffler and radiator, flexible installation.
8. Complete display of main parameters and protections on the control panel.
9. 15 months or 1000 running hours warranty, whichever comes first.
10. ISO and CE certificated.
