Truck Mounted 8 KVA Smallest Vehicle Soundproof Generator Set
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diesel Engine Power Output(KW): | 12 - 14 | Alternator Insulation Grade(stator/rotor): | H / H |
|---|---|---|---|
| Diesel Engine Type: | Three Cylinder, Direct Injection, Four Stroke | Diesel Engine Starting Mode: | 12V DC |
| Fuel Consumption(g/kw.h): | ≤220 | Alternator Number Of Phase: | Single Phase Three Wire |
| High Light: | RV generators,vehicle generators |
||
Truck Mounted 8KW - 11KW Soundproof Recreational Vehicle Generators Single Phase Three Wire
OUMA FAWDE series RV generators ranging from 8kw to 300kw are powered by China first top engine FAWDE. As the second biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.
Below are some features of our product:
1. 60℃ radiator, no overheat would happen in high temperature weather condition. For low temperature area, we add water preheater and oil heater to ensure easy start and good performance.
2. 62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment.

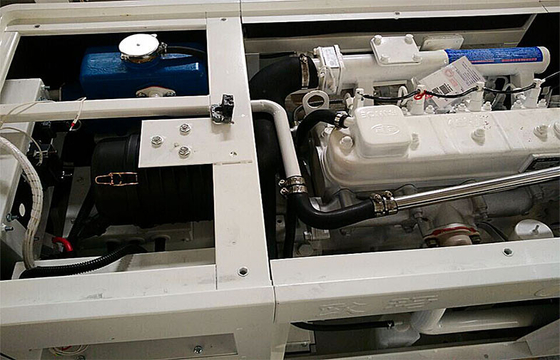

3. Four-cavity design of genset housing. i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, safety is ensured while performance of the genset is maximized.
4. Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most genset factories use.
5. 2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant.
6. Advanced painting and finishing, no painting colour fade within 5 years.
7. Battery switch to switch off battery when genset is not in use, so no power loss of battery.
8. Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe, so easy start of genset after long time of non-use.
9. Competitive price and fast delivery within 20 working days
10. 15 months or 1000 running hours warranty, whichever comes first.
11. Smallest size and most compact structure, maximum loading and installation space.
12. All spare parts available.
Applications:

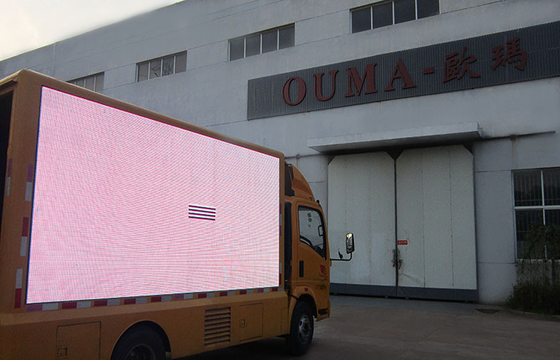

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

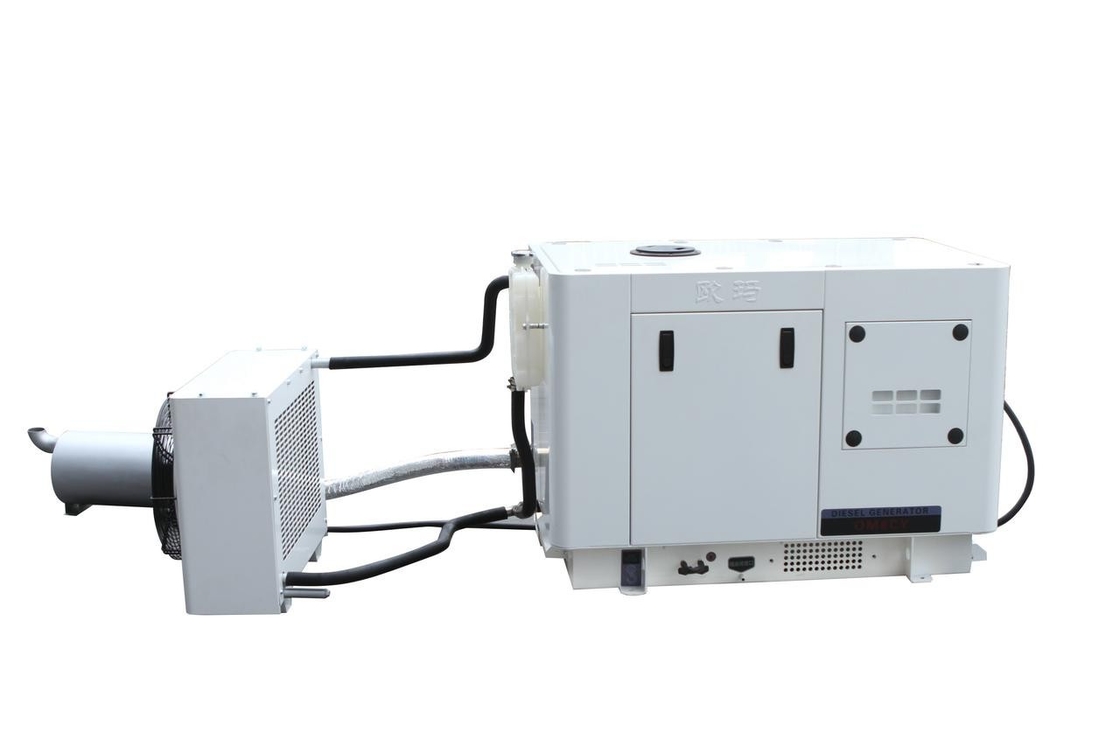

Ouma Generator Set
Specifications:
| Generator Set | Model | OM8CYF |
| Brand | OUMA | |
| Rated power(KW) | 8 11 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 69.5/34.7 91.6/45.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1070x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |

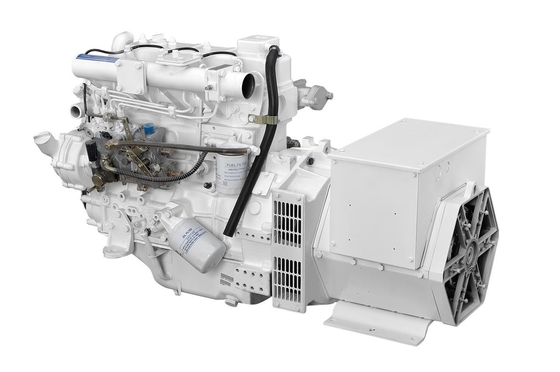

Ouma Engine & Alternator
| Diesel Engine | Model | OM388 |
| Brand | OUMA | |
| Power output(KW) | 12 14 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.4 | |
| Bore×Stroke(mm) | 88×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Radiator installation | Independent built-out | |
| Radiator dimension (L×W×H)(mm) |
620x510x340 | |
| Muffler installation | Independent built-out | |
| Water tank capacity(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164CZ |
| Brand | OUMA | |
| Rated power(KW) | 8.5 11 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
Competitive Advantage:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection.
5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma. 6. 15 months or 1000 running hours warranty, whichever comes first.
7. ISO and CE certificated.
