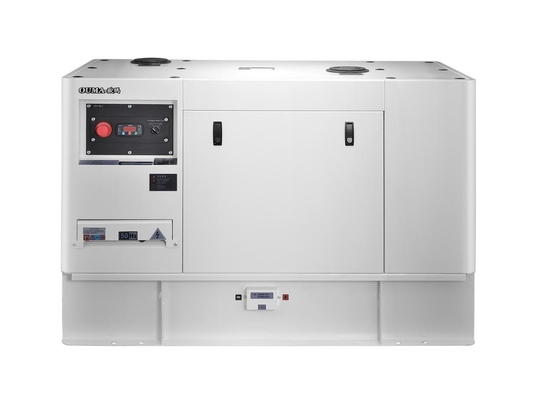

6KW - 9KW Three Cylinder Diesel Engine Recreational Vehicle Generators Single Phase Compact Structure and Smallest Size

Large Image : 6KW - 9KW Three Cylinder Diesel Engine Recreational Vehicle Generators Single Phase Compact Structure and Smallest Size Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM6CY

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

RV generators

vehicle generators

6KW - 9KW Three Cylinder Diesel Engine Recreational Vehicle Generators Single Phase Small Size

Quick Detail:

Single phase Recreation Vehicle Generator.
6KW/ 50Hz, 9KW/ 60Hz. Single or dual AC voltage
Driven by powerful three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
Shared fuel tank with the vehicle.
Integrated one-in-all type, easy connection and installation

Description:

Compact structure, light weight
Sinewave output with distortion ≤5%.
Three cylinder 1.2L water-cooled diesel engine
12V DC electric starting.

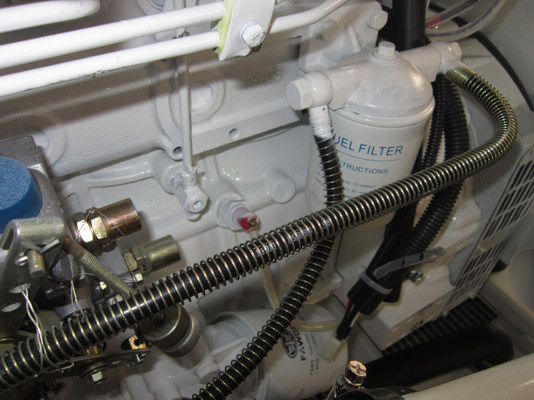

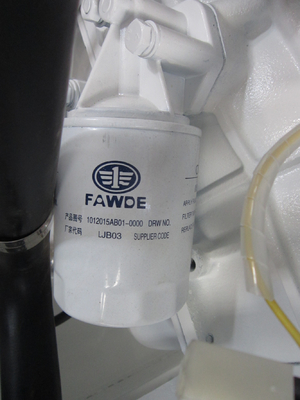

Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.

Applications:

Basic electricity supply for recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:

Generator Set	Model	OM6CY
	Brand	OUMA
	Rated power(KW)	6 9
	Rated voltage(V)	115/230 120/240
	Rated current(A)	52.1/26 75/37.5
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1270x680x750
	Overall weight(kg)	≤480
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM385
	Brand	OUMA FAWDE
	Power output(KW)	10 12
	Type	Three cylinder, direct injection, four stroke
	Displacement(L)	1.2
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C
	Brand	OUMA
	Rated power(KW)	8.5 10
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase,three wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. Solve your technical problems in 24 hours and provide international warranty service
2. Genuine spare parts supplied for whole life of the generator
3. Electrostatic painting for appearance protecting for shining and raining
4.Pre-delivery running testing and inspection
5. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.

6, 15 months or 1000 running hours warranty, whichever comes first.

7, ISO and CE certificated.
