Portable Recreational Vehicle Generators with Four Cylinder Diesel Engine 15KW 50Hz - 17KW 60Hz

Large Image : Portable Recreational Vehicle Generators with Four Cylinder Diesel Engine 15KW 50Hz - 17KW 60Hz Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM15CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

RV generators

vehicle generators

Portable Recreational Vehicle Generators with Four Cylinder Diesel Engine 15KW 50Hz - 17KW 60Hz

Quick Detail:

Phase: Three phase Four Wire.
Diesel Engine Type: Four cylinder, direct injection, four stroke
Rated voltage(V): 400/230V
Rated power(KW): 15KW / 17KW
Rated frequency(Hz):50Hz-60Hz
Within 62dBA at 7 meters
Brand engine and alternator
Quick delivery

Description:

Compact structure, light weight
Sinewave output with distortion ≤5%.
Diesel engine: Four cylinder, direct injection, four stroke
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.

Applications:

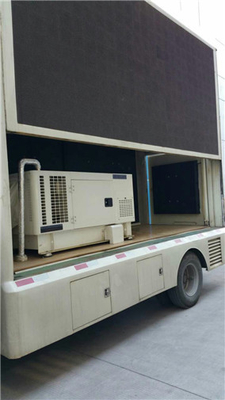

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:

Generator Set	Model	OM15CY3
	Brand	OUMA
	Rated power(KW)	15 17
	Rated voltage(V)	400/230 416/240
	Rated current(A)	27 29
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1410x780x950
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM495
	Brand	OUMA FAWDE
	Power output(KW)	21 25
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.2
	Bore×Stroke(mm)	95×105
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	9
Alternator	Model	OM184-3
	Brand	OUMA
	Rated power(KW)	15 17
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage
