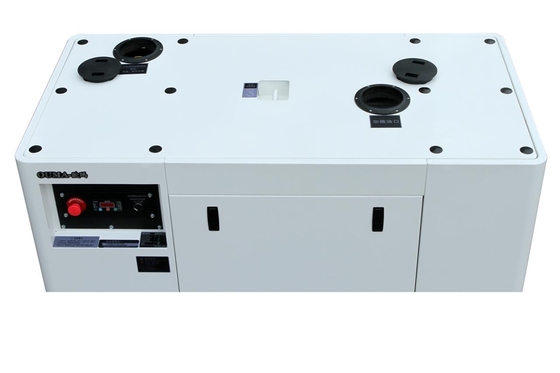

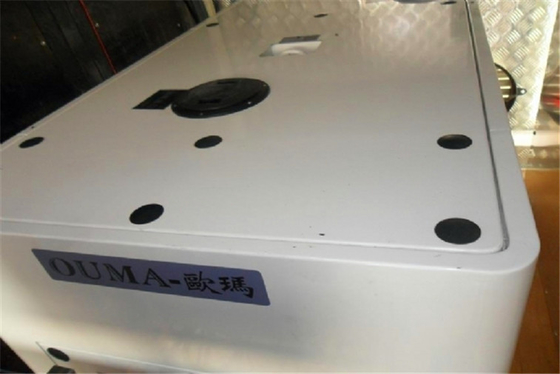

Portable 10KW - 12KW 3 Phase RV Generators with Three Cylinder 1.5L Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | vehicle generators,generator for rv |
||
|---|---|---|---|
Portable 10KW - 12KW 3 Phase RV Generators with Three Cylinder 1.5L Diesel Engine
Quick Detail:
- Three phase four wire with terminal block.
- 10KW/12.5KVA 50Hz or 12KW/15KVA 60Hz.
- Powered by four cylinder, 15kw/1500rpm, 17.6kw/1800rpm diesel engine.
- Share fuel tank with the vehicle for non stop running.
- Integrated one-in-all type, quick connection and installation.
Description:
Strong engine for durable running with more spare power.
High quality flame retartant insulation sponge
Complete protections and parameter digital display.
Completely removable service doors on both side.
Bottom air inlet and exhaust muffler.
Sinewave output with distortion ≤5%.
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Applications:
With this compact and lightweight attractive RV generator, you can runn the electric appliances on your small RV and enjoy your camping trip as at home.
Specifications:
| Generator Set | Model | OM10CY3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 18 20.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension(L×W×H)(mm) | ≤ 1410x780x950 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM490 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 15 17.6 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.5 | |
| Bore×Stroke(mm) | 90×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm, |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Quick installation and connection.
- Low noise running within 62dBA at 7meters
- Trailor-made design.
- Easy accessibility for maintenance.
- 1 year or 1000 hours running limited warranty.
- Above 90% market share in LED media vehicle use in China.
