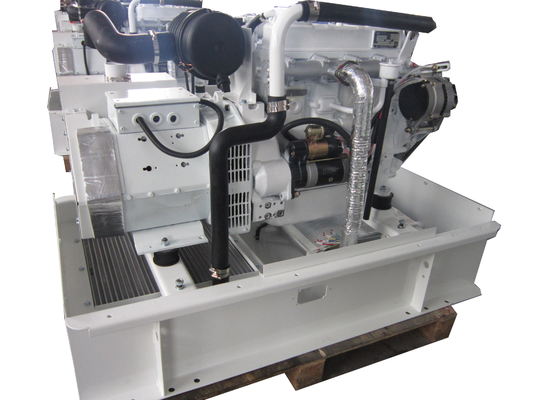

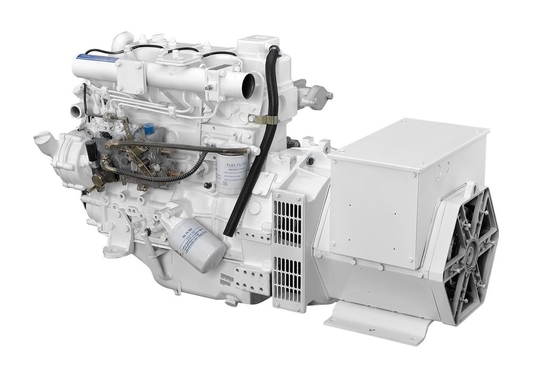

62dbA Silent Diesel Recreational Vehicle Generators AC Three phase 20KW / 50Hz , 24KW / 60Hz

Large Image : 62dbA Silent Diesel Recreational Vehicle Generators AC Three phase 20KW / 50Hz , 24KW / 60Hz Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM20CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated

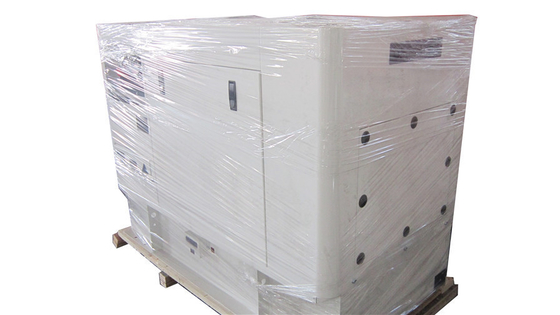

Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

vehicle generators

generator for rv

62dbA Silent Diesel Recreational Vehicle Generators AC Three phase 20KW / 50Hz , 24KW / 60Hz

Quick Detail:

Product Name: Recreation Vehicle Generator.
Output Type: AC Three phase
Power and Frequency 6KW/ 50Hz, 9KW/ 60Hz. Single or dual AC voltage

Description:

Compact structure, light weight
Sinewave output with distortion ≤5%.
Diesel engine: Four cylinder, direct injection, four stroke
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.
Driven by powerful three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
Shared fuel tank with the vehicle.
Integrated one-in-all type, easy connection and installation

Applications:

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:

Generator Set	Model	OM20CY3
	Brand	OUMA
	Rated power(KW)	20 24
	Rated voltage(V)	400/230 416/240
	Rated current(A)	36 41.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1550x780x950
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM498
	Brand	OUMA FAWDE
	Power output(KW)	25 30
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.6
	Bore×Stroke(mm)	98×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	10
Alternator	Model	OM184C3
	Brand	OUMA
	Rated power(KW)	20 24
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Wuxi Ouma Machiner Manufacturing Co.,Ltd is specialized in Diesel RV Generator / Vehicle Mounted Generator / Marine Generator Set /Silent Diesel Generator Set etc.
We have many years' experiences in this area. Our company has passed ISO9001:2000 Quality management Certificate and CE Certificate. Our capacity of producing is 30, 000 sets per month of several kinds of universal machines. The products are mainly exported to the European Union, the Middle East, Africa, South and East Asian Countries and Regions, etc.
We are looking forward to cooperating with friends from all over the world. We will give you best price, best services, and best quality. Welcome to visit us and develop long-term relationships with our company. We will never let you down.
