8KW - 11KW Custom Recreational Vehicle Generators by FOUR Cylinder 14KW Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV generators,vehicle generators |
||
|---|---|---|---|

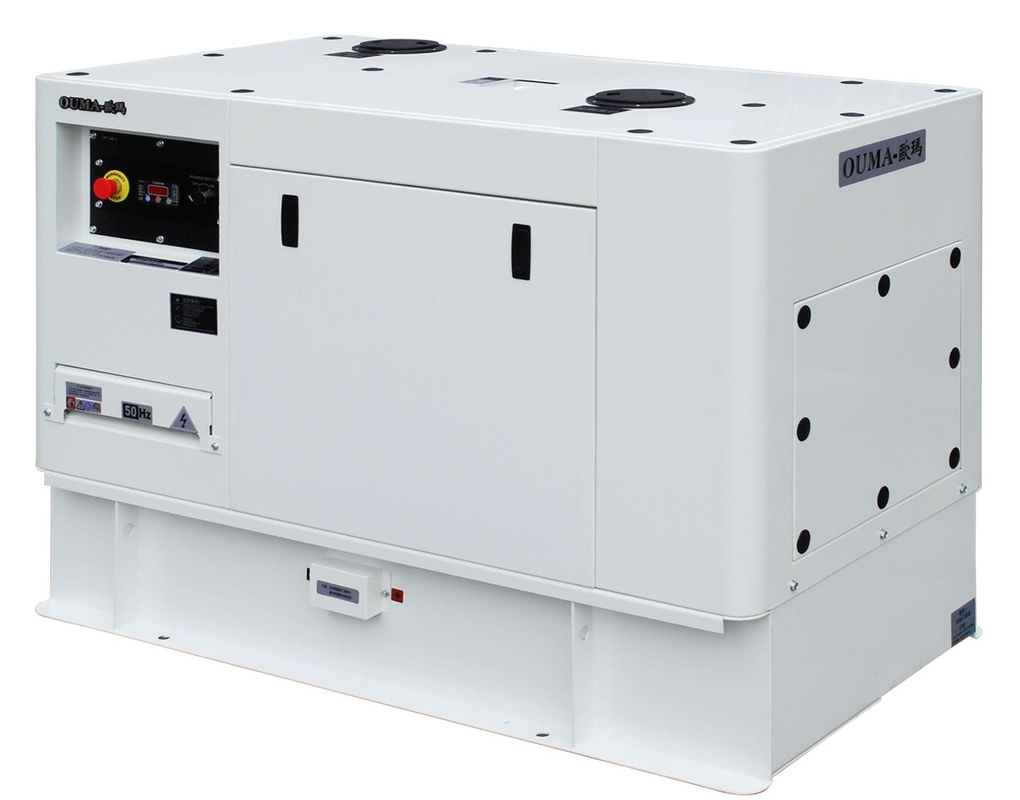

8KW - 11KW Custom Recreational Vehicle Generators by FOUR Cylinder 14KW Diesel Engine
Quick Detail:
Model:OM8CY Brand:OUMA Rated output: 8kw/11kw Rated Frequency: 50Hz/60Hz
Rated Voltage: 115/230V or 120/240V Rated Current: 69.5/34.7A or 91.6/45.8A
Overal Dimension: 1410x780x950 Waveform distortion:Sinewave, distortion ≤5%
Description:
Small size and ligth weight, save transportation cost and installation space.
Powerful 4-cylinder 1.4L low speed diesel engine prolong service life.
Mechinal governing, 12DC electric start, simple and reliable.
Low fuel consumption, low use cost.
Brushless alternator with AVR, 125° temperature rise and H grate insulaton.
Little deviation of voltage, good to run sensitive electronic equipment.
Applications:
This star RV generator is most suitable to be the power source in your small or mid-sized RVs.One-in-all type can be a standby power for your home in case of utility power cut off.
Specifications:
| Generator Set | Model | OM8CY |
| Brand | OUMA | |
| Rated power(KW) | 8 11 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 69.5/34.7 91.6/45.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension(L×W×H)(mm) | ≤ 1410x780x950 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM488 |
| Brand | OUMA | |
| Power output(KW) | 12 14 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.4 | |
| Bore×Stroke(mm) | 88×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA FAWDE | |
| Rated power(KW) | 8.5 11 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, |
Competitive Advantage:
- Custom design and onsite instructions.
- Free factory training or at customer site.
- Removable service doors make maintennce an easy job.
- Min size compared with counterparts of the same capacity.
- Compact and attractive aesthetic appearance.
- Above 90% market share in LED media vehicle use in Chinese market.
