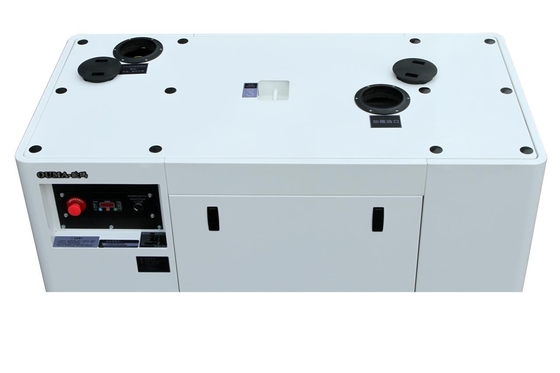

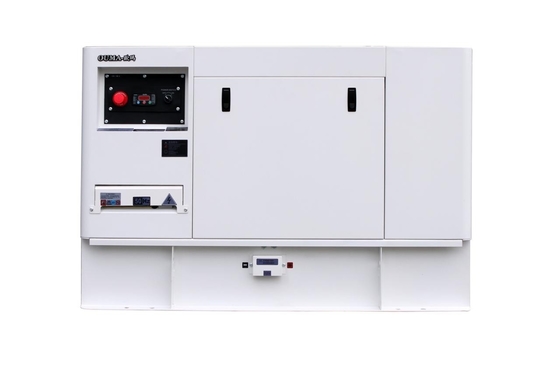

Mechanical Governed Low Noise Diesel Recreational Vehicle Generators 3 Phase for Mobile Vehicle 18KW - 20KW

Large Image : Mechanical Governed Low Noise Diesel Recreational Vehicle Generators 3 Phase for Mobile Vehicle 18KW - 20KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM18CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated

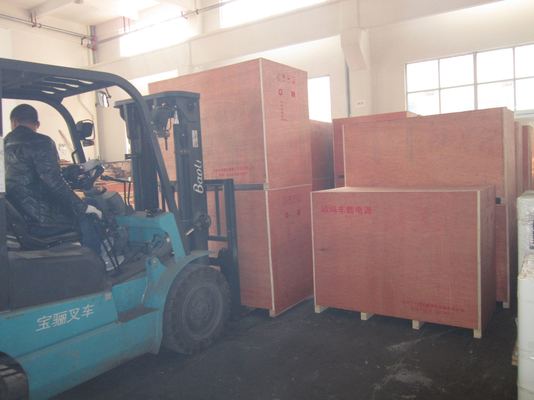

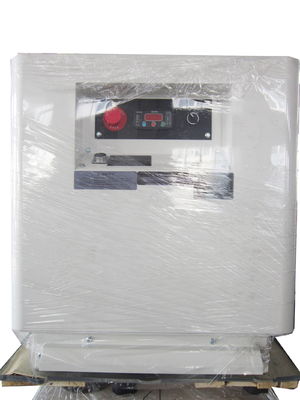

Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

vehicle generators

generator for rv

Mechanical Governed Low Noise Diesel Recreational Vehicle Generators 3 Phase for Mobile Vehicle 18KW - 20KW

Quick Detail:

Model:OM18CY3
Brand: OUMA
Rated power:18KW / 20KW
Phase: Three Phase
Rated frequency: 50Hz / 60Hz
Overall dimension(L×W×H)(mm):≤ 1550x780x950

Diesel Engine:

Type:Four cylinder, direct injection, four stroke
Power output: 25KW / 30KW
Fuel consumption(g/kw.h): ≤220
Oil capacity(L): 10
Alternator: brushless, three phase four wire.
Power delivery: Cable direct connection to terminal block.
Noise level:62dbA
CE certificated.

Description:

Four cylinder 1.2L water-cooled diesel engine
12V DC electric starting.
Compact structure, light weight
Sinewave output with distortion ≤5%.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.

Applications:

Powerful but economical choice for vehicel use in all occassions. Low fuel consumption save use cost. ATS optional to switch between utility power and generator set.

Specifications:

Generator Set	Model	OM18CY3
	Brand	OUMA
	Rated power(KW)	18 20
	Rated voltage(V)	400/230 416/240
	Rated current(A)	32.4 34.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1550x780x950
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM498
	Brand	OUMA FAWDE
	Power output(KW)	25 30
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.6
	Bore×Stroke(mm)	98×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	10
Alternator	Model	OM183C3
	Brand	OUMA
	Rated power(KW)	18 20
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection
5. ISO9001 and CE certification
