Low Noise 13.6KW - 15KW Recreational Vehicle Generators Three Phase Four Cylinder Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV generators,vehicle generators |
||
|---|---|---|---|

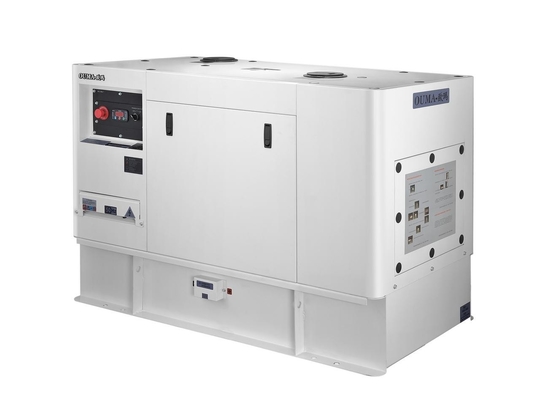

Low Noise 13.6KW - 15KW Recreational Vehicle Generators Three Phase Four Cylinder Engine
Quick Detail:
- Three phase four wire connection.
- 13.6KW 50Hz and 15KW 60Hz.
- Powered by four cylinder, 24 horse power/1500rpm28 horse power/1800rpm 1.8L diesel engine.
- Share fuel tank with the vehicle.
- Integrated one-in-all type, buy one and for all.
Description:

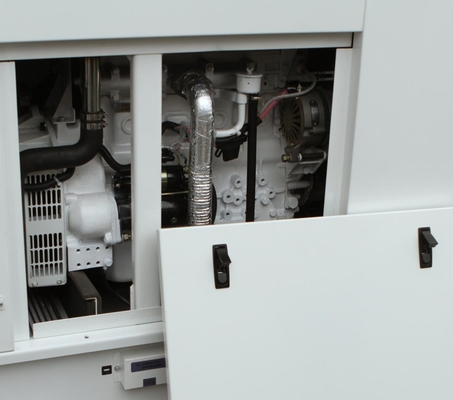

Engine: Four cylinder, direct injection, four stroke;Enclosed water-cooled;Mechanical governing system and 12V DC starting; Bottom air inlet and downward exhaust muffler; Less than 220g/kw.h fuel consumption,8.3L oil tank.
Alternator: Brushless, self-excitation,auto voltage regulation; Three phase four wire;125 ℃ temperature rise;Less than 1%steady-state voltage deviation; TIF＜50,THF＜2%.

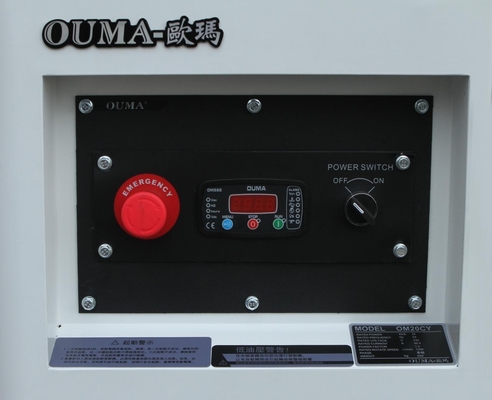

Control panel: Turkey made OEM for OUMA control panel,complete protections and digital display .
Applications:
Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specifications:
| Generator Set | Model | OM12CY3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 24.5 27 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1410x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM492 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 92×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184 -3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Above 90% market share in LED media vehicle use in China.
- Low noise running within 62dBA at 7meters.
- Availability of genuine spare parts.
- Free training in factory or at customer side.
- ISO and CE certificate.
- Long service life, reliable and durable.
