Model Name: | 3FM200 | Size: | 306*169*220 Mm |
---|---|---|---|
Voltage: | 6V | Terminal: | M8 |
Capacity: | 200AH | Color: | Black |
Weight: | 30kg | Application: | GOLF CART;Wheelchairs;Electric Power Vehicles |
High Light: | 12v sealed lead acid battery,rechargeable sealed lead acid battery |

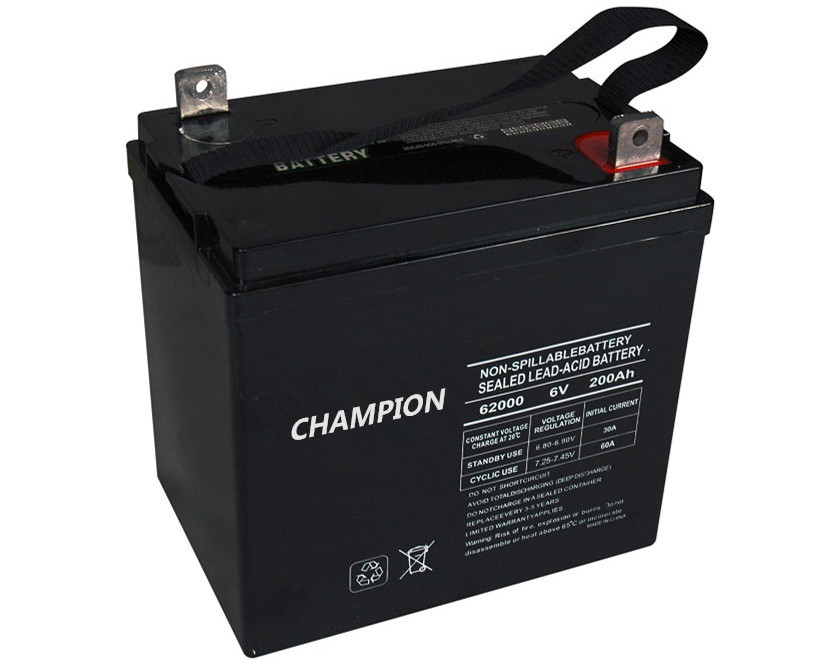

Sealed lead acid Battery 6v200ah for golf cart Deep cycle battery for motive power
Description:
1) Longer Cycle Service Life:
Deep Cycle (high-density active material and thick plates) design & special 4BS lead paste technology prolongs the cycle service life.
2) Excellent Discharging Ability:
Radial grid design & tight assembly technology ensures an excellent high-rate discharge performance
3) Excellent Deep Cycle Ability:
Unique grid alloys & special positive/negative lead paste formulations makes the battery perform excellent in deep cycle using and recover quickly upon over discharging and extend the float service life.
4) Low Self Discharge:
Using high purity raw materials ensures the battery has less self-discharge.
5) Environmental & Non-polluting Gas Recombination technology ensures the battery high seal reacting rate,which can prevent the acid fog from separating out.
6) Safe & Reliable :
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.
Applications:
1) Golf Cars, Wheelchairs& Electric Power Vehicles
2) Power Tools, Lawn Mowers & Vacuum Cleaners
3) Electric Toys & Recreation Equipments
4) Solar & Wind Power Generation Systems
5) Lighting Equipments
Specifications:
Place of Origin: |
Guangdong, China (Mainland)
|
Brand Name: |
Champion
|
Model Number: |
3FM200
|
Type: |
Deep cycle VRLA Battery
|
Nominal Voltage: |
6V
|
Size: |
306*169*220 mm
|
Nominal Capacity: |
200AH
|
name: |
Battery 6v200ah for golf cart,Deep cycle battery for motive power
|
certifate: |
CE
|
sample: |
available
|
service: |
OEM
|
container: |
ABS
|
printing color: |
white
|
warranty time: |
2 years
|
usge: |
Golf cart /golf trolley or motive power
|
Capacity 77°F(25°C) | 20 hours rate(10.4A 5.4V) | 208Ah | ||||
10 hours rate(20A 5.4V) | 200Ah | |||||
5 hours rate(35A 5.25V) | 175Ah | |||||
1 hour rate(130A 4.8V) | 130Ah | |||||
Internal Resistance | Full charged battery 77°F(25°C):4mΩ | |||||
Capacity affected by Temperature (10 hour rate) | 104°F(40°C) | 102% | ||||
77°F(25°C) | 100% | |||||
32°F(10°C) | 85% | |||||
5°F(-15°C) | 65% | |||||
Self-Discharge 68°F(20°C) | Capacity after 3 month storage | 90% | ||||
Capacity after 6 month storage | 80% | |||||
Capacity after 12 month storage | 60% | |||||
Max discharge current77°F(25°C):1000A(5S) | ||||||
Charge (Constant Voltage) | Float:6.8 to 6.9V/77°F/(25°C) | |||||
Cycle:7.25 to 7.45V/77°F/(25°C) | ||||||
Max Current:50A |
