Drilling Machinery HFA40 Anchor Drill Rig with 10m to 60m Bore Depth

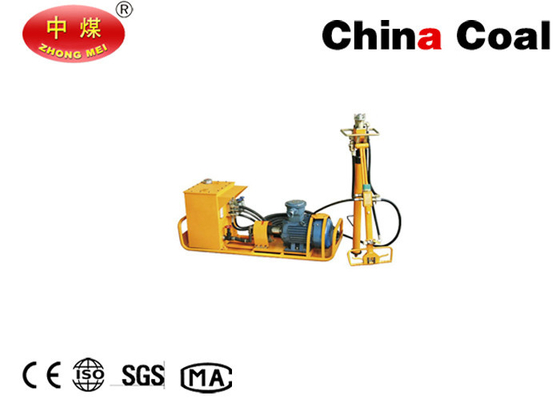

Large Image : Drilling Machinery HFA40 Anchor Drill Rig with 10m to 60m Bore Depth Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	China Coal
Certification:	CE/SGS/ISO
Model Number:	HFA40

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	carton box, plastic bags, wooden cases or as your requirement
Delivery Time:	5-10 days after your payment
Payment Terms:	TT, Western Union and Paypal
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Model:	HFA40	Bore Depth:	10-60 M
Bore Diameter:	90-180 Mm	Drilling Rod Diameter:	76*1500 Mm
Bore Dia Angle:	0-90	Power Head Torque:	2400 N.m
Max Lifting Force:	25 KN	Max Propulsion Force:	0-20 KN
Electric Motor Power For Power Head:	5.5 Kw Or 7.5 Kw
High Light:	rock drilling equipment , drilling machines

HFA40 Anchor Drill Rig

Keyword:Anchor Drill Rig ;anchor drilling machine; hydraulic rock drills
Product Introduction
1, Simple up and down device: the simple up and down device can adjust the horizontal height of anchor cable hole easily. Wear resisting Nylon plate can prevent guide track from wearing when power head operates.

2, reliable power head: cycloidal gear reductor and electric motor forms power head. The power and torque transmit is stable and big. The air packet is the air source inlet of impactor, in the meanwhile it can reduce the impact of power head from drilling rod. 3, Reliable propulsion device: This device adopts hydro-cylinder and chain propulsion with compact structure, big lifting force and good stability.

Technical Parameters

HFA40 Anchor Drill Rig
Model	HF40
Bore Depth	10-60 m
Bore Diameter	90-180 mm
Drilling Rod Diameter	76*1500 mm
Bore Dia Angle	0-90
Power Head Torque	2400 N.m
Max Lifting Force	25 KN
Max Propulsion Force	0-20 KN
Electric Motor Power for Power Head	5.5 kw or 7.5 kw
Electric Motor Power for Hydraulic System	4 kw
Weight	500 kg
Max Component Weight	150 kg
Overall Dimension	28008001400 mm
