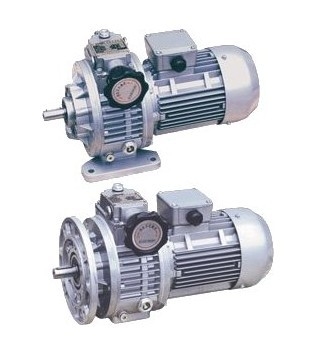

MB Planet Cone-Disk Stepless Speed Variator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | MB series Stepless Speed Variator,Stepless Speed Variator with Motor,Stepless Speed Variator |
||
|---|---|---|---|
MB series Stepless Speed Variator,Stepless Speed Variator with Motor,Planet Cone-Disk Stepless Speed Variator
Product Description
MB Variator with even stree,high governing sensitity and excellent durability,it is capable in structure and easy to operate.
Hight strength,wide range of speed change,high precision,reliable performance,variable combination etc characteristics.
MB SERIES VARIATOR MODEL SELECTION TABLE(EVERGEAR DRIVE) | |||||||||||||
Base NO. | 1 | 2 | 3 | 4 | 5 | 6 | |||||||
Input Power: | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | |
Variator model | Output Speed | Output Torque Allowed | |||||||||||
Basic Model | 190-950 | -- | 3.5-1.8 | 5.1-2.7 | 8_4 | 11-5.4 | 15.3-8 | 21--11 | 30.6-16 | 42-22 | 59-29 | 77-40 | 105-54 |
190-760 | 2.5-1.6 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
Single Stage | 100-500 | -- | 6.5-3.4 | 9.5-5 | 14.2-7.4 | 20_10 | 29.2-1.5 | 40-20 | 58-30 | 80-40 | 104-54 | 143-74 | 200-101 |
80-400 | -- | 8-4.2 | 12.3-6.2 | 17.5-9.3 | 25-12.5 | 37-18.5 | 50-25 | 71-37 | 100-50.5 | 130-67 | 180-93 | 245-126 | |
60-300 | -- | 11-6.5 | 15.8-8.3 | 24.5-13 | 33.2-16.8 | 50-21.7 | 65-34 | 98-50 | 134-67.5 | 173-90 | 240-124 | 330-168 | |
40-200 | -- | 16-8.4 | 24-12.5 | 35.4-18.5 | 50-25 | 73-37 | 100-50.5 | 147-74 | 200-101 | 256-135 | 380-190 | 490-253 | |
Two-Stage | 30-150 | -- | -- | -- | -- | -- | -- | -- | 186-100 | 267-132 | 356-176 | 490-242 | 668-330 |
28-140 | -- | -- | -- | 52-26 | 70-35.4 | 105-52 | 143-71 | -- | -- | -- | -- | -- | |
25-125 | -- | 25-13 | 39-20 | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
20-100 | -- | -- | -- | -- | -- | -- | -- | 294-145 | 401-198 | 535-264 | 735-363 | 1002-495 | |
18-90 | -- | -- | -- | 81-40 | 100-55 | -- | -- | -- | -- | -- | -- | -- | |
15-75 | -- | 42-22 | 65-32.6 | -- | -- | 196-97 | 255-132 | -- | -- | -- | -- | -- | |
13-65 | -- | -- | -- | 113-76 | 150-76 | -- | -- | -- | -- | -- | -- | -- | |
9-45 | -- | 65-37 | 105-54 | -- | 230-140 | -- | -- | -- | -- | -- | -- | -- | |
8-40 | -- | -- | -- | 182-91 | 250-124 | -- | -- | -- | -- | -- | -- | -- | |
6.5-32.5 | -- | -- | -- | 225-112 | 300-152 | -- | -- | -- | -- | -- | -- | -- | |
Three-Stage | 4.7-23.5 | -- | 138-69 | 204-102 | 292-150 | 426-207 | 603-303 | 795-413 | -- | -- | -- | -- | -- |
2_10 | -- | 238-96 | 258-141 | 426-356 | 426 | 787-420 | 795-429 | -- | -- | -- | -- | -- | |
