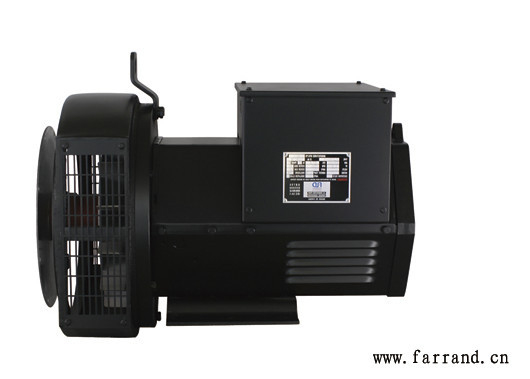

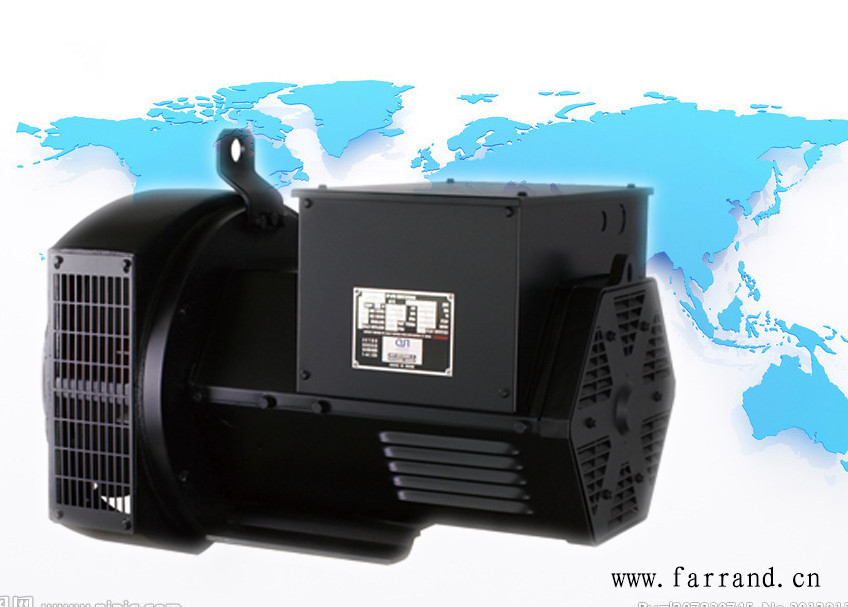

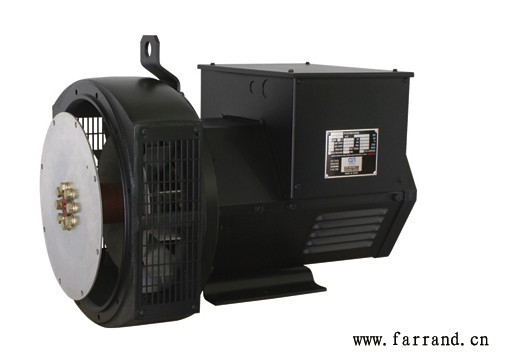

Copper Wire Portable Diesel Generator 3 Phase Class H Magnetic
|
Product Details:
|
Detailed Product Description
| High Light: | brushless exciter generator,brushless permanent magnet alternator |
||
|---|---|---|---|
Copper Wire Portable Diesel Generator 3 Phase Class H Magnetic
Quick Detail :
- Brushless alternator with exciter .
- Shunt excitation with AVR .
- 3 Phase winding 12 wires 2/3 pitch .
- Single bearing or double bearing arrangement .
- IP22 / IP23 enclosure .
- Prime mover: diesel or engine .
Detail Parameter :
|
FLD184E 3-PHASE CLASS H TEMPERATURE-RISE(125℃) |
||||||||||
|
VOLTAGE |
50HZ 1500RPM |
60HZ 1800RPM |
||||||||
|
STAR-SERIES |
380 |
400 |
415 |
440 |
416 |
440 |
460 |
480 |
600 | |
|
STAR-PARALLEL |
190 |
200 |
208 |
220 |
208 |
220 |
230 |
240 |
300 | |
|
∆-SERIES |
220 |
230 |
240 |
254 |
240 |
254 |
266 |
277 |
346 | |
|
FLD184E |
Rated capacity (KVA) |
22.5 |
22.5 |
22.5 |
22.5 |
27.5 |
30.0 |
30.0 |
30.0 |
30.0 |
|
Rated power (KW) |
18.0 |
18.0 |
18.0 |
18.0 |
22.0 |
23.0 |
23.0 |
24.0 |
24.0 | |
|
Efficiency (%) |
84.3 |
84.9 |
85.3 |
85.8 |
83.8 |
84.3 |
84.9 |
85.2 |
85.6 | |
|
Input power (KW) |
21.4 |
21.2 |
21.1 |
21.0 |
26.2 |
27.1 |
27.1 |
28.2 |
28.0 | |
Information for AVR :
We have many types of AVR , such us SX460 , SX440 , SX421 , MX341 , MX321 , etc . FLD184 series is equipped with SX460 .
· The main stator provides power for excitation of the exciter field via AVR .
· Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier .
· Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss .
· Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions .
Competitive Advantage :
- 100% copper wire .
- Strict quality control system .
- Competitive price .
- Good Service .
What we can guarantee:
We are available to help you in selecting the right production for your application while providing you samples of our products for evaluation . Quality is our culture .We are committed to providing the highest level of customer service , competitive pricing , speedy delivery and a comprehensive , cutting-edge product offering . Our ultimate goal is your satisfaction .
FAQ
Q . How much will the shipping of my order cost ?
Our shipping costs are calculated depending on the total weight and measurement CBM of the items you wish to purchase and your destination.We always do our best to keep the shipping costs to a minimum.Our forwarder has a long contract with us , we can get a big discount for you .
Q . How long does a sample takes ?
If we have in stock , a sample will be delivered less than 3days .
Usually a sample takes 5 days . Please contact us which type that you needs , we will show you delivery time immediately .
Q . What is the MOQ of the product ?
Our MOQ can meets your promotional business very well .
Q . Do you accept OEM ?
Yes , we do . We can match any your samples .
Q . How many types of AVR do you have ?
Such as SX460 , MX321 , MX341 , SX440 , SX440T , AS440 , etc .
Q . How long is your quality guarantee period ?
All alternators are warranted for 12 months from the notify date of waiting transportation .
