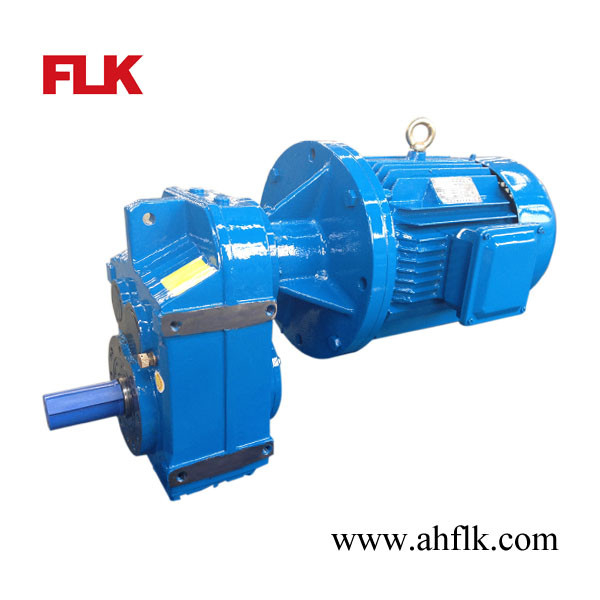

Shaft Mounted Parallel Shaft Helical Gearbox for Coveyors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | crane duty gearbox,speed gearbox,Parallel Shaft Helical Gear Reducer |
||
|---|---|---|---|
Technical data:
1,output torque:200-50000(N.m)
2,rated power:0.18-200(kw)
3,input speed:≤1500 (rpm)
4,output speed:≤280(rpm)
5,transmission ratio:≥5.36
6,series:3
7,install form:M1-M6
8,Model no. :K/KA/KF/KAF/KH/KHF(37/47/57/67/77/87/97/107/127/157/167/187)
Specifications
This gear speed reducer is a new transmission machine designed & manufactured by helical-bevel gear transmission principle.
1. High mechanical efficiency: 94%-98% (depends on the transmission steps);
2. Input form: flange input, direct motor input, shaft input;
3. Materials of gear speed reducer body: HT250 high-strength cast iron;
4. Materials of shafts:42CrMo alloy steel;
5. Materials of gears : 20CrMnTi alloy steel;
6. Heat treatment: tempering, cementiting, quenching;
7. Surface hardness of gears: HRC58°-62 °;
8. Maching precision of gears: 6-5GRADE;
9. Brand of bearings: HRB, LYC,ZWZ,NSK;
10. Noise of gear speed reducer : 60-68dB.
Hollow shaft gearbox electric motor Application:
1. Chemistry, Chemical Industry, Petroleum, Pharmacy and Dyeing
2. Environmental Protection, Sewage treatment, Tap water purification and Garbage treatment
3. Rubber, Plastics, Tyre, Tanning and Papermaking
4. Security door, Garage door, Automatic window and Lifting stage
5. Cement equipment, mine and Coal Mine
6. Railway, Road, Construction, Bridge, Underground and Tunnel
7. Port and dock, Shipbuilding industry and Deep water dock unloading
8. Water conservancy Construction, Nuclear power industry and Hydropower industry
9. Automobile industry and Garage
10. Machine tool industry
11. Textile industry
12. Food, Brewage industry and Packing industry
13. Professional transmission mechanism for Hoisting machine
14. Steel and Smelting
