10KW - 12KW Portable Silent RV Diesel Generator with Four Cylinder Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Power(KW): | 10KW/50HZ, 12KW/60HZ | Noise Level(dB@7m): | 62 |
|---|---|---|---|
| Diesel Engine Type: | Four Cylinder, Direct Injection, Four Stroke | Number Of Phase: | Three Phase Four Wire |
| High Light: | portable diesel generator,diesel power generator |
||

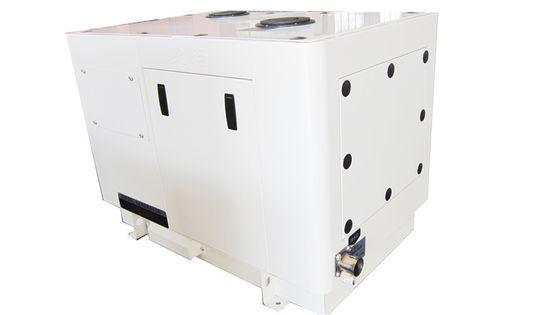

10KW - 12KW Portable Silent RV Diesel Generator with Four Cylinder Diesel Engine
Description:
Engine:1.5L four cylinder, direct injection, four stroke ,enclosed water-cooled diesel engine;Mechanical governing system,12V DC starting; Bottom air inlet and downward exhaust muffler; Less than 220g/kw.h fuel consumption and 8.3L oil tank.
Alternator: H/H insulation grade, 125 degree temperature rise;Brushless, self-excitation,auto voltage regulation;;Less than 1%steady-state voltage deviation; TIF＜50,THF＜2%.
Control panel: OM588, parameter display: AC voltage, frequency, running hour, charging voltage
Applications:

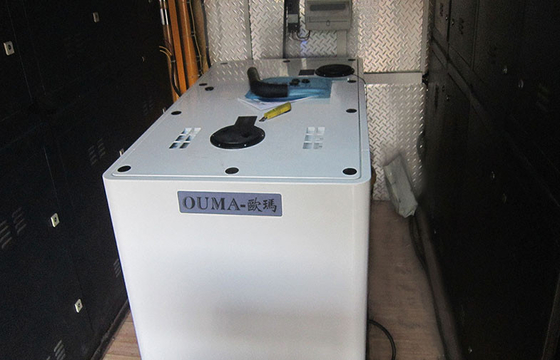

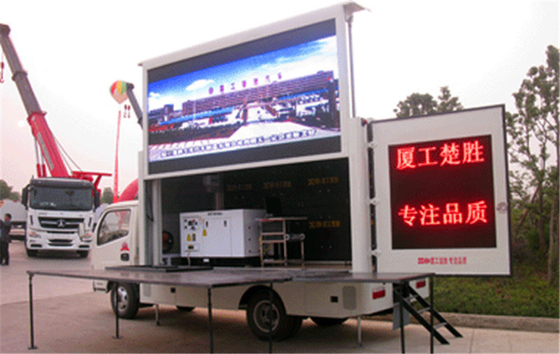

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Speficiations:
| Generator Set | Model | OM10CY3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 18 20.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension(L×W×H)(mm) | ≤ 1410x780x950 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM490 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 15 17.6 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.5 | |
| Bore×Stroke(mm) | 90×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
Competitive Advantage:
- Above 90% market share in LED media vehicle use in China.
- Low noise running within 62dBA at 7meters.
- Availability of genuine spare parts.
- Free training in factory or at customer side.
- ISO and CE certificate.
- Long service life, reliable and durable.
- Competitive price and fast delivery within 20 working days
- 15 months or 1000 running hours warranty, whichever comes first
- ISO and CE certificated
- All spare parts available
