Soundproof Durable Recreational Vehicle Generators Split Type 6KW - 9KW

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Soundproof Durable Recreational Vehicle Generators Split Type 6KW - 9KW Get Best Price

Product Details:
Place of Origin: China
Brand Name: OUMA
Certification: ISO,CE
Model Number: OM6CYF
Payment & Shipping Terms:
Minimum Order Quantity: 5 units
Price: To be negotiated
Packaging Details: Plastic film and veneer case
Delivery Time: 15 working days
Payment Terms: T/T or L/C at sight
Supply Ability: 50 units / day
Contact Now
Detailed Product Description
Rated Voltage: 115/230 120/240 Rated Current（A）: 52.1/26 75/37.5
Overall Dimension: ≤ 1070x680x750 Overall Weight（kg）: ≤480KG
Fuel Tank Capacity(L): None Diesel Engine Type: Three Cylinder
High Light:

RV generators

,

vehicle generators

Truck Mounted 6KW - 9KW Soundproof Recreational Vehicle Generators Single Phase Three Wire


Quick Detail:

  1. Product name: Recreation Vehicle RV Generator.
  2. Single phase
  3. 6KW/ 50Hz, 9KW/ 60Hz. Single or dual AC voltage
  4. Driven by powerful three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
  5. Shared fuel tank with the vehicle.
  6. Integrated one-in-all type, easy connection and installation

Applications:

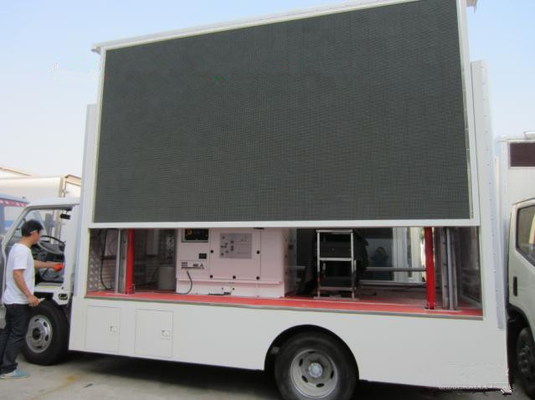

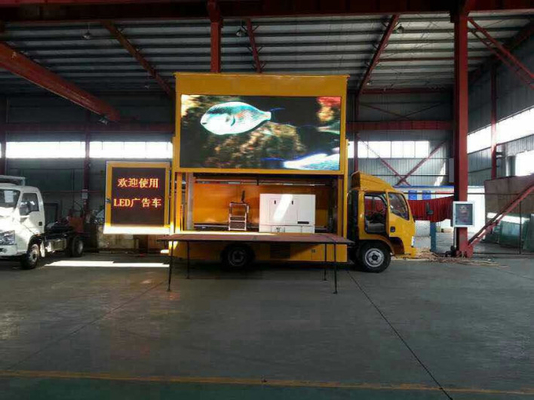

Power source for small recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.





Ouma Generator Set

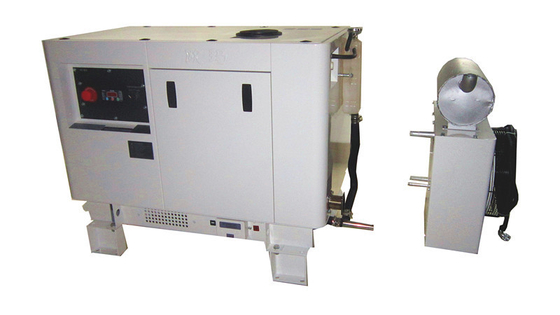

Soundproof Durable Recreational Vehicle Generators Split Type 6KW - 9KW


Specifications:


Generator Set Model OM6CYF
Brand OUMA
Rated power(KW) 6             9
Rated voltage(V) 115/230       120/240
Rated current(A) 52.1/26        75/37.5
Rated frequency(Hz) 50              60
Waveform distortion  Sinewave, distortion ≤5%
Noise level(dB@7m) 62
Battery(12V-Ah) None
Overall dimension
(L×W×H)(mm)		 ≤ 1070x680x750
Overall weight(kg) ≤480
Fuel tank capacity(L) None





OUma Engine & Alternator



Soundproof Durable Recreational Vehicle Generators Split Type 6KW - 9KW



Diesel Engine Model OM385
Brand OUMA
Power output(KW) 10        12
Type Three cylinder, direct injection, four stroke
Displacement(L) 1.2
Bore×Stroke(mm) 85×95
Rotation speed(r/m) 1500   1800
Governor system Mechanical
Starting mode 12V DC
Filter system Dry air filter, fuel filter, oil filter
Cooling type Enclosed water-cooled

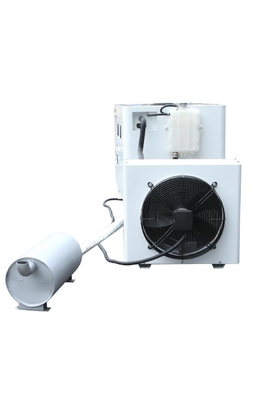

Radiator installation Independent built-out
Radiator dimension
(L×W×H)(mm)		 620x510x340
Muffler installation Independent built-out
Water tank capacity(L) 9
Fuel consumption(g/kw.h) ≤220
Oil capacity(L) 8.3
Alternator Model OM164C
Brand OUMA
Rated power(KW) 8.5    10
Excitation mode Brushless, self-excitation
Voltage regulation Auto regulation
Number of phase Single phase three wire
Number of pole 4
Rotation speed(R/M) 1500    1800
Temperature rise(℃) 125
Insulation grade(stator/rotor) H/H
Voltage regulation range w/o load ≥95%～105%
Steady-state voltage deviation Less ±1%
Interference factor TIF＜50,THF＜2%
IP grade IP22





Ouma Control Panel



Soundproof Durable Recreational Vehicle Generators Split Type 6KW - 9KW



Control panel Model OM588
Manufacturer OUMA
Power output Terminal post
Installation In-built and remote cable connected
Remote conrol w/ cable(M) 12
Manufacturer OUMA
Auto function

Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
Parameter display

AC voltage, frequency, running hour,
charging voltage




Competitive Advantage:



  1. Above 90% market share in LED media vehicle use in China.
  2. Low noise running within 62dBA at 7meters.
  3. Availability of genuine spare parts.
  4. Free training in factory or at customer side.
  5. ISO and CE certificate.
  6. Long service life, reliable and durable.
  7. Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
  8.  15 months or 1000 running hours warranty, whichever comes first.
  9. ISO and CE certificated.
