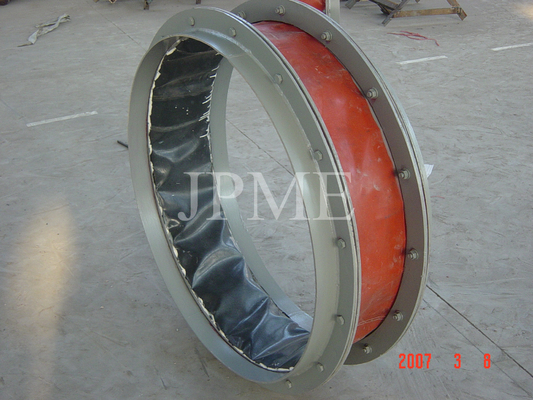

anti - corrosion flexibility of stainless steel bellow and rubber damping pipe compensator

anti - corrosion flexibility of stainless steel bellow and rubber damping pipe compensator

Constitute the main body of the elastic component of their work is non-metallic material, usually fabric, also known as fabric compensator (expansion joints, expansion joints). Another rubber material, such material in addition to ultra-high temperature (above 400) the case can not meet conditions, other conditions can be an alternative fabric.
Connection: flange, weld

Description:

Metal Bellows and compensator combine the flexibility of stainless steel bellow and rubber damping,  it can absorb shock and noise,  compensate Heat inflation and cold shrinking,  and also can compensate installation dimension.

Technical data:

1.material:S.S.304/316/316L
2.DN6-8000, Length as your need
3.Pressure:0.1~1.6MPa
4.Temp.:-60~400

5.Axis direction compensation:10-100mm

6.Angle direction compensation:10-40degrees

7.Media:hot air,  SO2,  steam,  water,  oil,  acid,  gas and etc.

Advantage:

High temperature resistant

high pressure resistant

anti-corrosion

Longer working expectation
