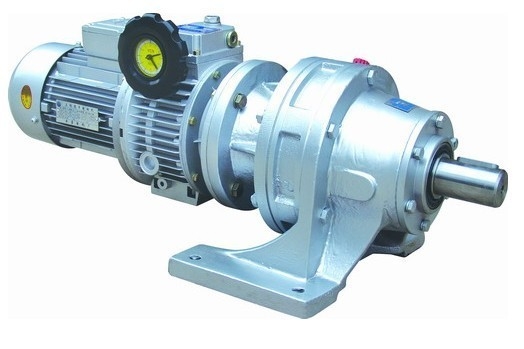

High Precision Speed Variator CVT Automatic Transmission Combination Gear Reducer

High Precision Speed Variator CVT Automatic Transmission Combination Gear Reducer

Descriptions :

1, the precision of speed regulation in 1 r/min, this is the leader of similar products.

2, all transmission parts are through strict processing, precision processing,  yan grinding; As a result, long service life and low noise.
3, can be in the range of 1:5 the fastest implementation from the low speed to the highest of any speed stepless period of change.
4, can reasonable and gear speed reducer, cycloid pin wheel reducer, worm gear reducer, such as combination, to meet different occasions the output torque, rotating speed of minimum and maximum output of different requirements

Features:

1. The large range of speed: speed range R = 5, the output speed can be arbitrary change between the input speed of 1/1.45 to 1/7.25, and the machine is easy with a variety of reducer, growth machine straight league, and get very low or high speed range
2. Suitable for continuous work, operating can be positive and negative in the load starting and load according to the need to adjust the speed, the suitable process parameters and changeful or continuous change request.
3. High precision speed control, speed control precision is 0.5-1 r/min, this is only a unique advantage of stepless transmission of its kind.
4. High strength: under the action of impact load or machine reverse, this function is reliable, accurate transmission, no recoil, and have enough strength.
5. Stable performance: the machine all components of the friction pair, are using GCr15 bearing steel, the strict heat treatment, precision machining, grinding (example: each group of planetary friction wheel thickness difference is not greater than 0.005 mm), contact and good lubrication.
6. Under the permitted load, selected on the top of the output speed is constant.

7. Strong combination, the function and cycloidal reducer, gear reducer, worm gear and worm reducer straight association-like combination, small volume and high efficiency of low speed stepless variable speed, so it has good adaptability
8. Smooth operation, low noise, long service life, less maintenance, simple operation, high efficiency.


Applications:

Perfect for the machinery and equipment of following industry:
1. Mechanical-electromechanical industry
2. Automatic production line
3. Transport & Packaging
4. Food processing & Beverage
5. Conveyor & Material handling
6. Mining, Quarry & Cement
7. Construction & Metal processing
8. Beverage industry
9. Plastic & Chemical industry

Advantages:

1. Highly standard modular designed

The products are easily connected with and driven by different types of motors or other kinds of input power. The same type geared motor can be adapted to optioned powers of motors. It’s therefore easy to realize different solutions for varied requirements.

2. Ratio
Featured many closely divided ratios and wide range of them. Very big ratios can be obtained through combined units to reach extremely low output speeds.

3. Mounting arrangement
No strict limitation to the mounting arrangement.

4. High strength,compact dimension
Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburising process and precise grounding to sequentially get high capacity of per certain volume.

5. Long service life
under the condition of accurately selecting type size and the normal maintenance and use, main components (except those easily-disabled parts) can last as long as up to more than 25000 hours. Easily disabled parts include lubricating oil,oil seals, and bearings.

6. Low noise
All key components are finished by precisely machining, accurate assembly, and finally tested,and therefore, fairly low noise is reached.

7. High efficiency
The efficiency of gear unit can reach 95%. The efficiency of worm gear can reach 89%

Models:
