Small Dimension 62dB Noise Portable RV Generator for Recreational Vehicle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Power(KW): | 15KW / 1500RPM 17KW / 1800RPM | Genset Rated Voltage(V): | 115/230 120/240 |
|---|---|---|---|
| Noise Level(dB@7m): | 62 | Overall Dimension (L×W×H)(mm): | ≤1410x780x950 |
| Diesel Engine Type: | Four Cylinder, Direct Injection, Four Stroke | Alternator Excitation Mode: | Brushless, Self-excitation |
| High Light: | RV diesel generators,silent diesel generator |
||
15KW - 17KW Portable RV Generator for Recreational Vehicle, Billboard Trucks, Emergency Vehicles and Telecommunication Vehicle and so on
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. We are the No. 1 FAWDE engine user in genset application in China,
Original Stamford and copy Stamford alternator: No effect on noise level, still keep 57dbA at 7 meters. Parts are compatible.
Description:
The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity. So the genset can run at very low noise and genset size is quite small.
Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized. Other factories install everything in a single cavity, the engine chamber is very hot during running.
Radiator motor for central AC is used for the radiator fan, so the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours.
This is very important and special. Other radiator fan can only guarantte 500 hours.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:
OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share.
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Details:

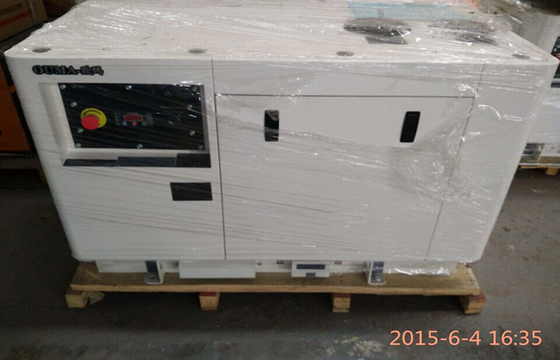

Ouma Generator Set
Specifications:
| Generator Set | Model | OM15CY |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 130/65.2 141/70.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1410x780x950 | |
| Fuel tank capacity(L) | None |

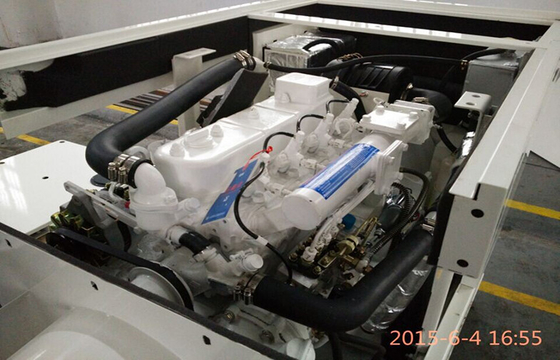

Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM495 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 21 25 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.2 | |
| Bore×Stroke(mm) | 95×105 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 9 | |
| Alternator | Model | OM184 |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Central AC type cooling fan: 20,000 hours service life
4. 15 months or 1200 running hours warranty, whichever comes first.
5. 2.0mm cold-rolled steel soundproof canopy
6. ISO and CE certificated.
Contact information:
Factory Address: Southeast to Crossing of Xidong Avenue
and Xisha Road, Wuxi, Jiangsu, China
Tel : 86-510-88609781 EXT 8007
E-mai : sales@oumagenerator.com
B2B web : www.diesel-rv-generator.com
Homepage : www.oumagenerator.com
