13.6KW / 50HZ , 15KW / 60HZ Silent RV Generator Unique Four Cavity Compact Structure
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV diesel generators,silent diesel generator |
||
|---|---|---|---|
13.6KW - 15KW Portable RV Generator Smallest Size, Small size and light weight
Unique structure makes the whole units compact and light weight and can be placed anywhere you want in a ship.
Unique protected design : Simple protected hull, enclosed and water-proof, has the performance of sound absorptivity and heat insulation.
Quick Detail:
| Model | Rated power(kw) | Rated voltage(V) | Noise level(dB@7m) | Rated current(A) | Overall dimension(L×W×H)(mm) |
| OM12CY |
13.6kw / 50hz 15kw / 60hz |
115 / 230 120 / 240 |
62 | 118/59.1 125/62.5 | ≤ 1410x780x950 |
Description:
Adopt the first top Chinese or international brand engines, alternators and control panels.
First biggest customer(Himoinsa second) for FAWDE. FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi.
Unique noise reduction technology, noise of silent gensets is only 62dBa at 7 meters.
This is a remarkable noise level.

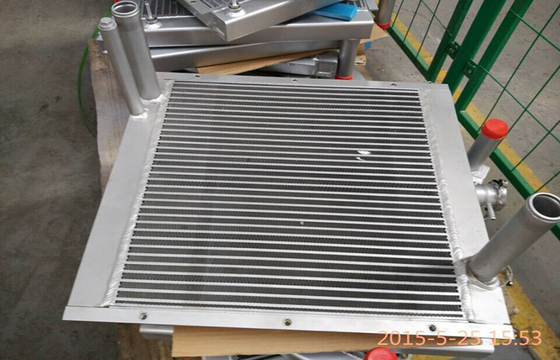

60℃ radiator is used on all gensets so they can be used in all weather conditions without power reduction or overheat. This is very important, especially in hot weather areas. Remember generally people use 40 degree radiator, this is not enough for hot areas. We also use oil cooler for very hot
countries.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

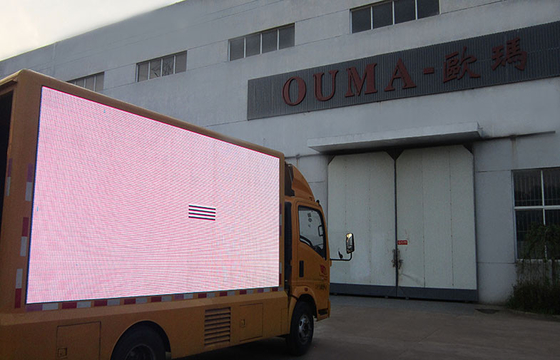

OUMA portable vehicle generator set with power rage of 6-25kW is mobile uninterruptible power designed for some special application, such as recreational vehicles, billboard trucks, emergency vehicles and telecommunication vehicle and so on.
Specification:
Ouma Generator Set
| Generator Set | Model | OM12CY |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 118/59.1 125/62.5 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1410x780x950 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
| Diesel Engine | Model | OM492 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 92×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- 60℃ radiator, no overheat would happen in high temperature weather condition. For low temperature area, we add water preheater and oil heater to ensure easy start and good performance.
- 57dbA to 62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment.

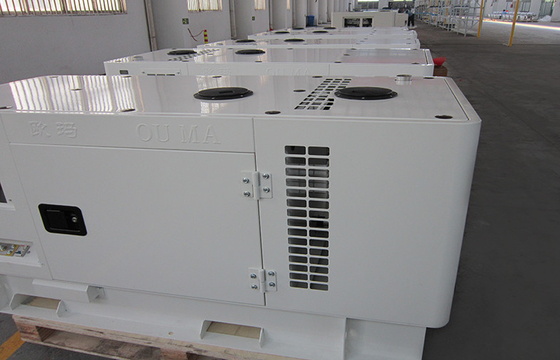

- Four-cavity design of genset housing,the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40- 50 ℃, safety is ensured while performance of the genset is maximized.
- Smallest size and most compact structure, maximum loading and installation space.
- ISO and CE certificated.
Contact information:
Factory Address: Southeast to Crossing of Xidong Avenue
and Xisha Road, Wuxi, Jiangsu, China
Tel : 86-510-88609781
Fax: 86-510-88232984
E-mai : sales@oumagenerator.com
B2B web : www.diesel-rv-generator.com
Homepage : www.oumagenerator.com
