FAWDE Engine Portable RV Generator 10KW - 12KW Patented Cooling System Powerful
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV diesel generators,silent diesel generator |
||
|---|---|---|---|
FAWDE Engine Portable RV Generator 10KW - 12KW Patented Cooling System Powerful
We have achieved the best effect in genset SIZE, NOISE, OUTLOOK, PERFORMANCE and RELIABILITY which are the final and most difficult points for gensets production.
Especially our unit design in cooling system which keep internal temprature like our normal living temperature, this is remarkable achievement, as this is most suitable for using gensets in hot areas.
Quick Detail:
| Model | Rated power(kw) | Rated voltage(V) | Noise level(dB@7m) | Overall weight(kg) | Overall dimension(L×W×H)(mm) |
| OM10CY |
10kw / 50hz 12kw / 60hz |
115 / 230 120 / 240 |
62 | ≤480 | ≤ 1410x780x950 |
Description:
- Assembling bolts are hidden covered by corrosion-resistant rubber cover.
- Painting is by electrostatic spraying, no color difference or fading within 5 years.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.
- Battery switch to switch off battery when genset is not in use, so no power loss of battery.
- Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

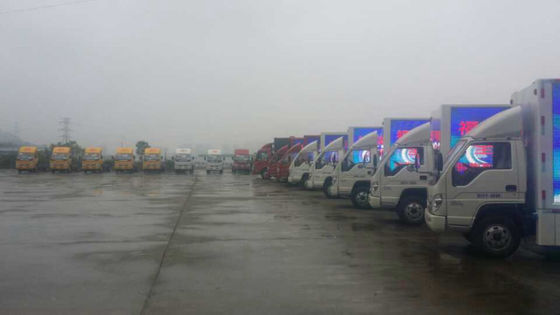

In China, OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share. Where is LED media vehicle, where is OUMA generator!
Specification:
Ouma Generator Set
| Generator Set | Model | OM10CY |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 86.9/43.4 100/50 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension(L×W×H)(mm) | ≤ 1410x780x950 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
| Diesel Engine | Model | OM490 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 15 17.6 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.5 | |
| Bore×Stroke(mm) | 90×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1, We are the No. 1 FAWDE engine user in genset application in China, second is Himoinsa who is a Spanish company with factory here in China.
2, 57dbA to 62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment.
3, Four cavity design of genset housing,the genset can run at very low noise and genset size is quite small.
Internal temperature of the genset housing is kept 40- 50 ℃, safety is ensured while performance of the
genset is maximized.
