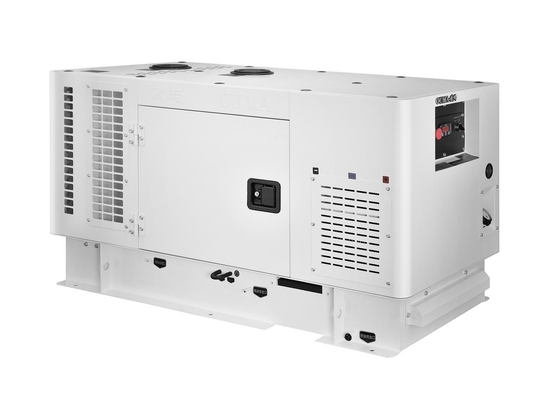

Portable RV Generator FAWDE Engine Copy / Origin Brushless Stamford Alternator

Large Image : Portable RV Generator FAWDE Engine Copy / Origin Brushless Stamford Alternator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE, SONCAP
Model Number:	OM15CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	50 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

Genset Rated Power(KW):	15KW / 1500RPM 17KW / 1800RPM	Overall Dimension (L×W×H)(mm):	≤ 1410x780x950
Noise Level(dB@7m):	62	Engine Power Output(KW):	21KW / 50HZ 25KW/60HZ
Engine Type:	Four Cylinder, Direct Injection, Four Stroke	Engine Fuel Consumption(g/kw.h):	≤220
High Light:	RV diesel generators , silent diesel generator

15KW - 17kw Portable RV Generator Silent Type Three Phase for Recreational Vehicle, LED Broadcasting, telecommunications Use

OUMA FAWDE series RV generators ranging from 8kw to 300kw are powered by China first top engine FAWDE.

Optional Choice: Kubota, Perkins, Cummins, Yanmar,etc. international well-known engine brands.

Description:

Forklift slots can be standard for us without extra charge to you, other factories are optional with additional charge.
Remote control with cable in driving cab.
We are using 8 antivibration dampers, not most factories are using 4.

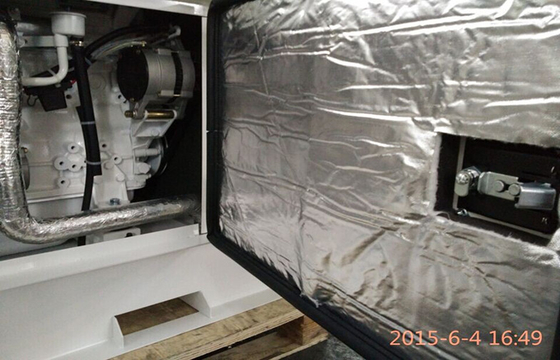

1200 ℃ high temperature resistant and fireproof speical high quality sponge, while others use common sponge, cost is more than double, which is safe .
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.

Warranty:

Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.

Applications:

OUMA RV generator mainly used in recreational vehicle, LED broadcasting truck...

Specification:

Generator Set	Model	OM15CY3
	Brand	OUMA
	Rated power(KW)	15 17
	Rated voltage(V)	400/230 416/240
	Rated current(A)	27 29
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1410x780x950
	Fuel tank capacity(L)	None

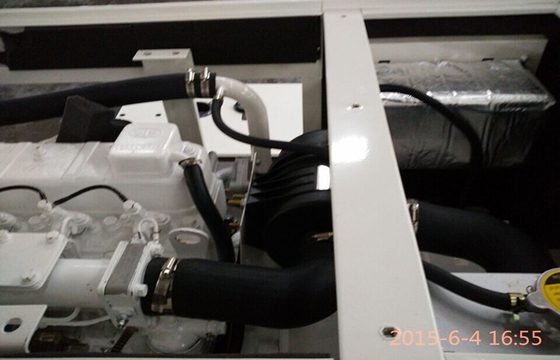

Diesel Engine	Model	OM495
	Brand	OUMA FAWDE
	Power output(KW)	21 25
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.2
	Bore×Stroke(mm)	95×105
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	9
Alternator	Model	OM184-3
	Brand	OUMA
	Rated power(KW)	15 17
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. As the first biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.
2. Downward air inlet and exhaust, same to the vehicles.

3, Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance
4. Central AC type cooling fan: 20,000 hours service life

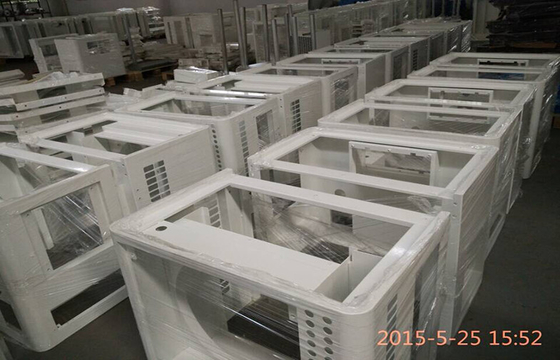

5. 2.0mm cold-rolled steel soundproof canopy

6,60℃ radiator is used on all gensets so they can be used in all weather conditions

7. ISO, SONCAP and CE certificated.
