18 KVA Portable RV Generator FAWDE Engine Brushless Copy Stamford Alternator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Power(KW): | 18KW / 1500RPM 20KW / 1800RPM | Rated Current(A): | 156/78.2 166/83 |
|---|---|---|---|
| Noise Level(dB@7m): | 62 | Overall Dimension (L×W×H)(mm): | ≤ 1550x780x950 |
| Waveform Distortion: | Sinewave, Distortion ≤5% | Alternator Excitation Mode: | Brushless, Self-excitation |
| High Light: | RV diesel generators,silent diesel generator |
||

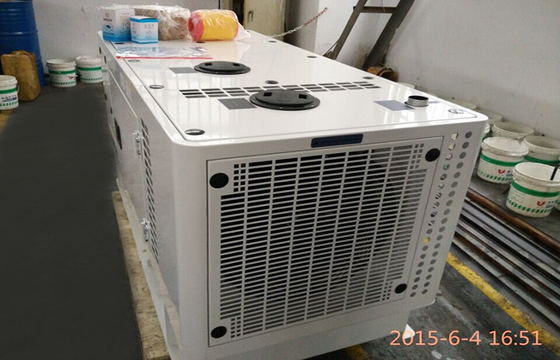

18KW - 20KW Portable RV Generator with FAWDE Engine Brushless Copy Stamford Alternator
OUMA FAWDE series RV generators ranging from 8kw to 300kw are powered by China first top engine FAWDE. As the first biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.
In China, OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share. Where is LED media vehicle, where is OUMA generator!
Description:
- Forklift slots without any extra charge
- emote control with cable in driving cab.
- Downward air inlet and exhaust, same to the vehicles.
- Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50%, THF＜2%, IP22.
- Complete display of main parameters and protections on the control panel.
- Unique noise reduction technology, noise of silent gensets is within 62 dbA.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

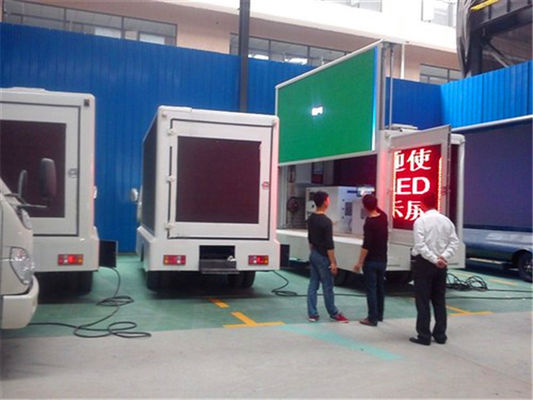

OUMA RV generator mainly used in recreational vehicle, LED broadcasting truck...
Details:
Ouma Generator Set
Specifications:
| Generator Set | Model | OM18CY |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 156/78.2 166/83 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None |

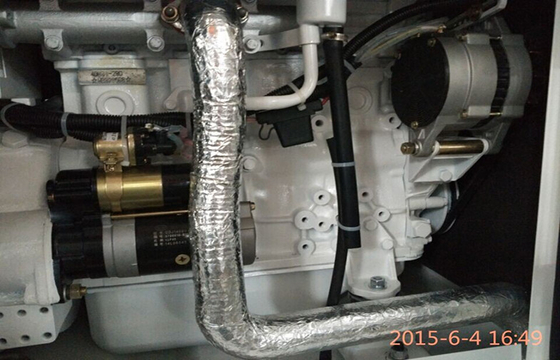

Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM183C |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Central AC type cooling fan: 20,000 hours service life
4. 15 months or 1200 running hours warranty, whichever comes first.
5. 2.0mm cold-rolled steel soundproof canopy
6. ISO and CE certificated.
Contact information:
Factory Address: Southeast to Crossing of Xidong Avenue
and Xisha Road, Wuxi, Jiangsu, China
Tel : 86-510-88609781 EXT 8007
E-mai : sales@oumagenerator.com
B2B web : www.diesel-rv-generator.com
Homepage : www.oumagenerator.com
