Silence Enclosed Canopy Portable RV Generator 6KW / 6KVA
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Voltage(V): | 115/230 120/240 | Genset Rated Current(A): | 52.1/26 75/37.5 |
|---|---|---|---|
| Noise Level(dB@7m): | 62 | Overall Dimension (L×W×H)(mm): | ≤ 1270x680x750 |
| Overall Weight(kg): | ≤480 | Fuel Tank Capacity(L): | None |
| High Light: | RV diesel generators,silent diesel generator |
||
6KW - 9KW Silence Type with Enclosed Corrosion Proof Canopy Portable RV Generator
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. We are the No. 1 FAWDE engine user in genset application in China, second is Himoinsa who is a Spanish company with factory here in China.
Quick Detail:
| Model | Rated power(kw) | Diesel engine brand | Engine type | Engine starting mode | Alternator brand |
| OM6CY |
6kw / 50hz 9kw / 60hz |
FAWDE |
Three cylinder, direct injection, four stroke | 12V DC | Copy Stamford |
Description:
- Remote control with cable in driving cab.
- Complete display of main parameters and protections on the control panel.
- Unique noise reduction technology, noise of silent gensets is within 62 dbA.
- Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

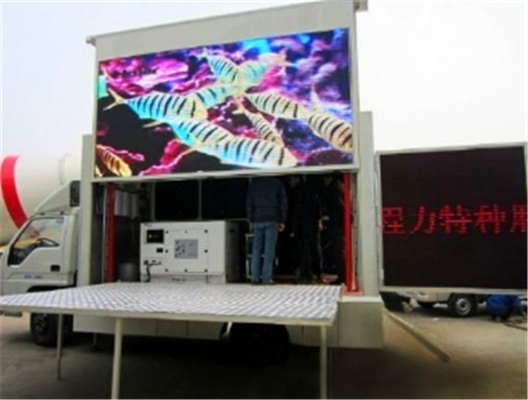

OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share.
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Details:
Ouma Generator Set
Specifications:
| Generator Set | Model | OM6CY |
| Brand | OUMA | |
| Rated power(KW) | 6 9 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 52.1/26 75/37.5 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1270x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
Specifications:
| Diesel Engine | Model | OM385 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Relay, fuse and AVR are in one box for easy maintenance or repair.This is double protection and easy check.
4. samallest size and perfect cooling system
5. Above 90% market share in LED media vehicle use in Chinese market.
6. ISO and CE certificated.
