Low Vibration Portable RV Generator 4-cavity Design Structure 20KW / 25KVA

All Products

Motor Gear Reducers (80)

Helical Gear Reducer (110)

Cycloidal Gear Reducer (95)

Planetary Gear Reducer (101)

Bevel Gear Reducer (72)

Shaft Mounted Speed Reducer (112)

Recreational Vehicle Generators (66)

Diesel RV Generator (51)

Portable RV Generator (60)

Portable Diesel Generator (168)

Silent Diesel Generator Set (117)

Stepless Speed Variator (58)

Side Entry Agitator (114)

Electric Motor Gearbox (104)

Flexible Shaft Coupling (57)

Worm Gear Screw Jack (45)

I'm Online Chat Now

Certification

Good quality Helical Gear Reducer for sales

We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Dean

Cooperation is very satisfactory and the YouSu of the past few years, we are very willing to continue long-term cooperation

—— Mr. Carlos

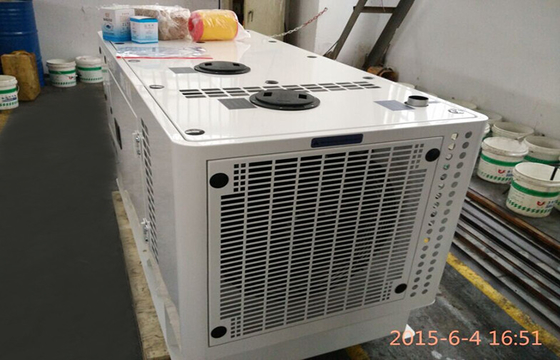

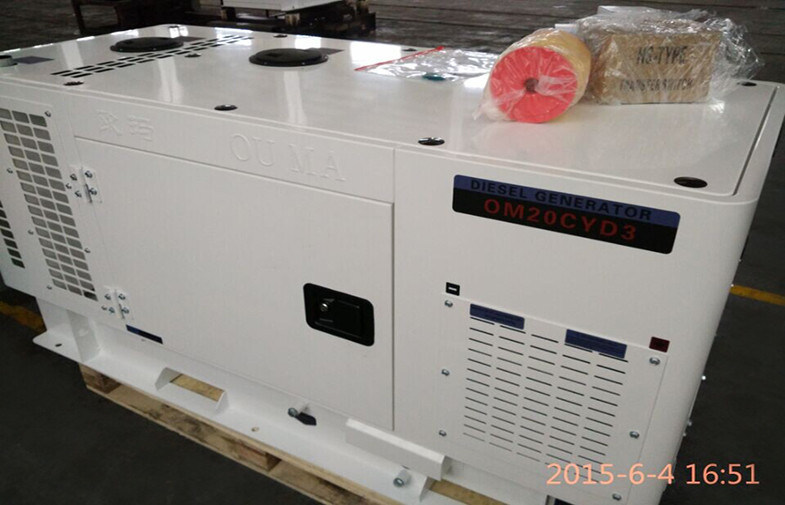

Low Vibration Portable RV Generator 4-cavity Design Structure 20KW / 25KVA

Large Image : Low Vibration Portable RV Generator 4-cavity Design Structure 20KW / 25KVA Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE, SONCAP
Model Number:	OM20CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	50 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

RV diesel generators

silent diesel generator

Low Vibration Portable RV Generator 4-cavity Design Structure 20KW / 25KVA

OUMA FAWDE series RV generators ranging from 8kw to 300kw are powered by China first top engine FAWDE. As the biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.

Description:

1, Battery switch to switch off battery when genset is not in use, so no power loss of battery.

2, Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe.

3, Relay, fuse and AVR are in one box for easy maintenance or repair.

This is double protection and easy check.

4, Assembling bolts are hidden covered by corrosion-resistant rubber cover.

5, 2.0mm cold rolled steel for the genset canopy, rigid and corrosion resistant.

Painting is by electrostatic spraying, no color difference or fading within 5 years.

6, 60℃ radiator is used on all gensets so they can be used in all weather conditions.

7, 4-cavity design, the genset can run at very low noise and genset size is quite small.

Warranty:

Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.

Applications:

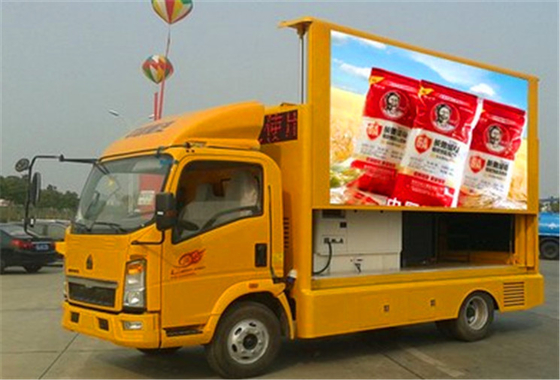

In China, OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share. Where is LED media vehicle, where is OUMA generator!

Specification:

Generator Set	Model	OM20CY3
	Brand	OUMA
	Rated power(KW)	20 24
	Rated voltage(V)	400/230 416/240
	Rated current(A)	36 41.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1550x780x950
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM498
	Brand	OUMA FAWDE
	Power output(KW)	25 30
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	2.6
	Bore×Stroke(mm)	98×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	10
Alternator	Model	OM184C3
	Brand	OUMA
	Rated power(KW)	20 24
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control Panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Low Vibration Portable RV Generator 4-cavity Design Structure 20KW / 25KVA

Competitive Advantage:

We are using 4-cavity design, special cooling system, 60 degree radiator, etc. In the condition performance is good, the most key points for a genset is NOISE and SIZE, which we have achieved both LOW NOISE and SMALLEST SIZE. The most important is our genset can't have OVERHEAT problem even in very hot area due to the patent designed COOLING SYSTEM.
